Fuwa QUY150C

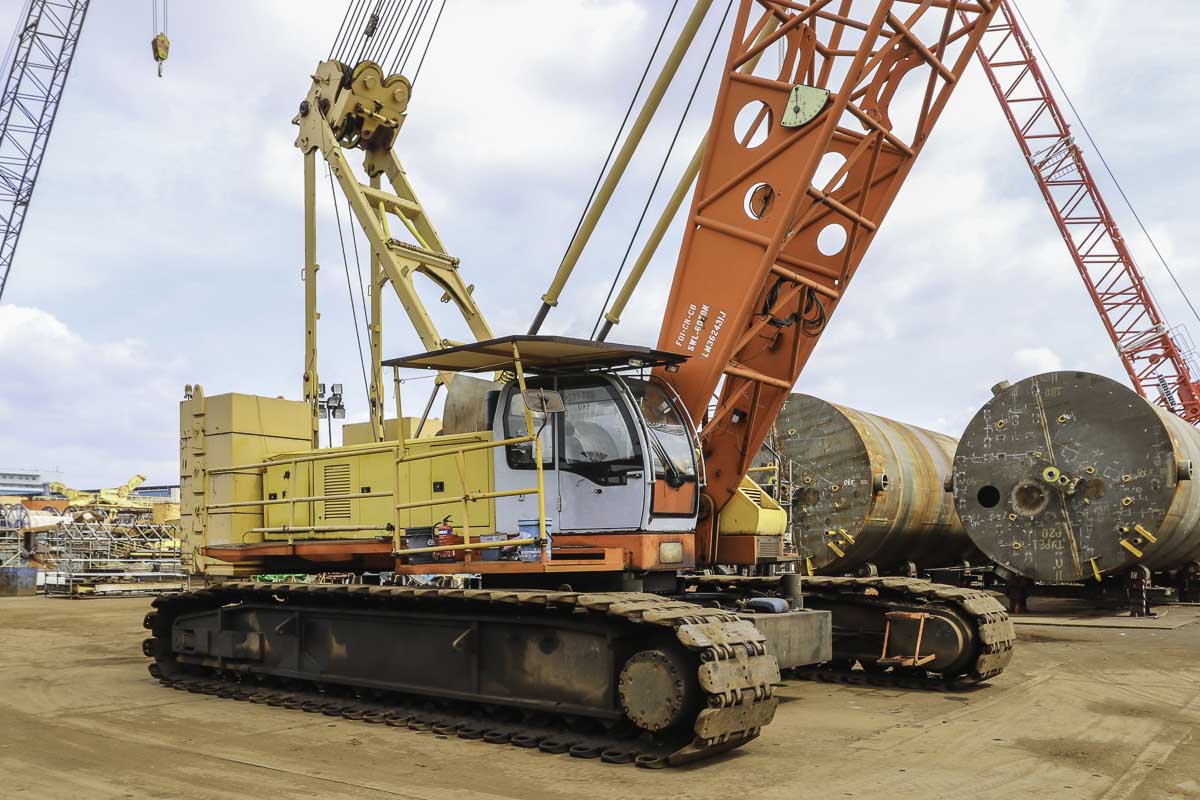

This interesting Fuwa QUY150C was used on a fabricagion yard in Singapore (SG). It is a 150-tonne crawler crane.

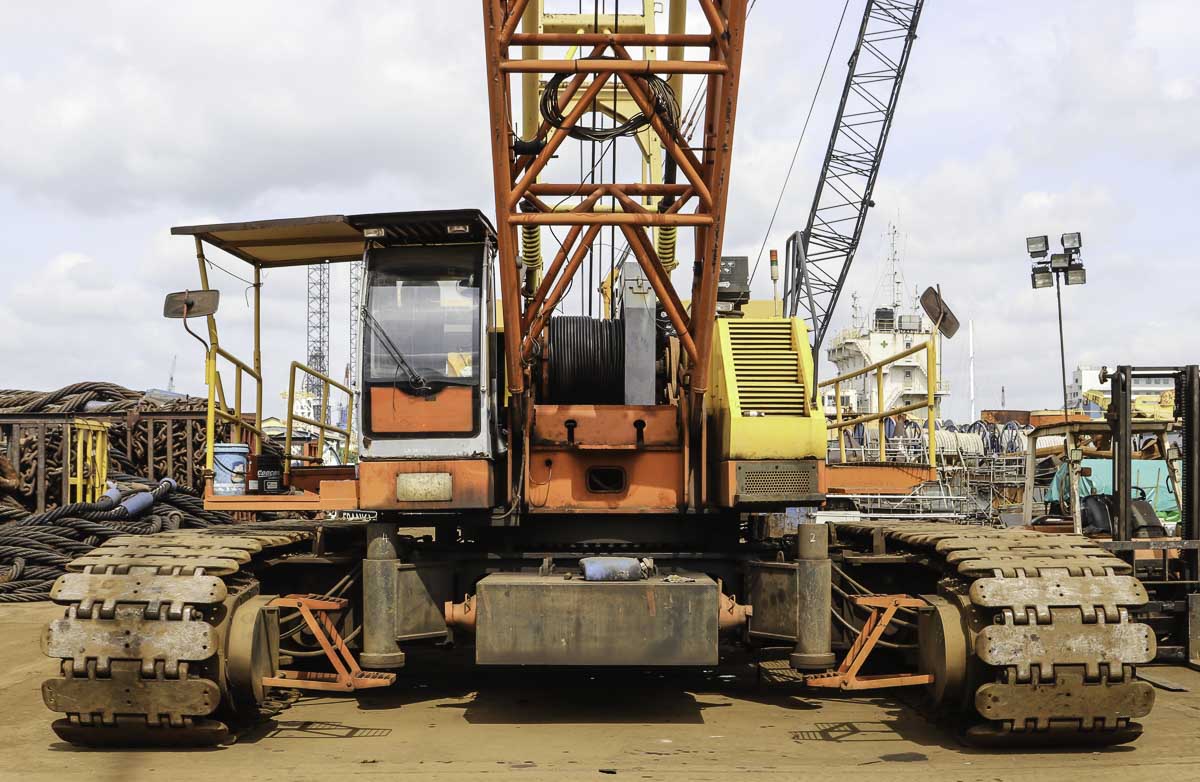

The carrier is 8.37 meters long and 6.74 meters wide.
The crane is powered by a diesel engine with a power of 209 kW (280 hp).

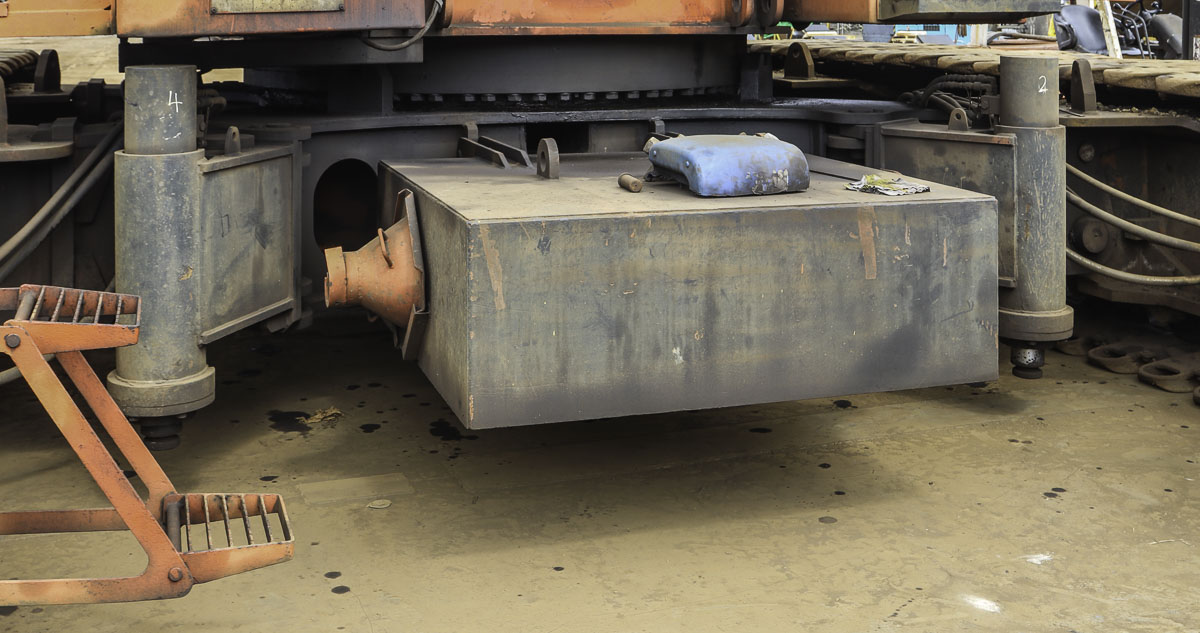

Attached to the carrier is in total 10 tonnes of central counterweight, each side a block of 5 tonnes.

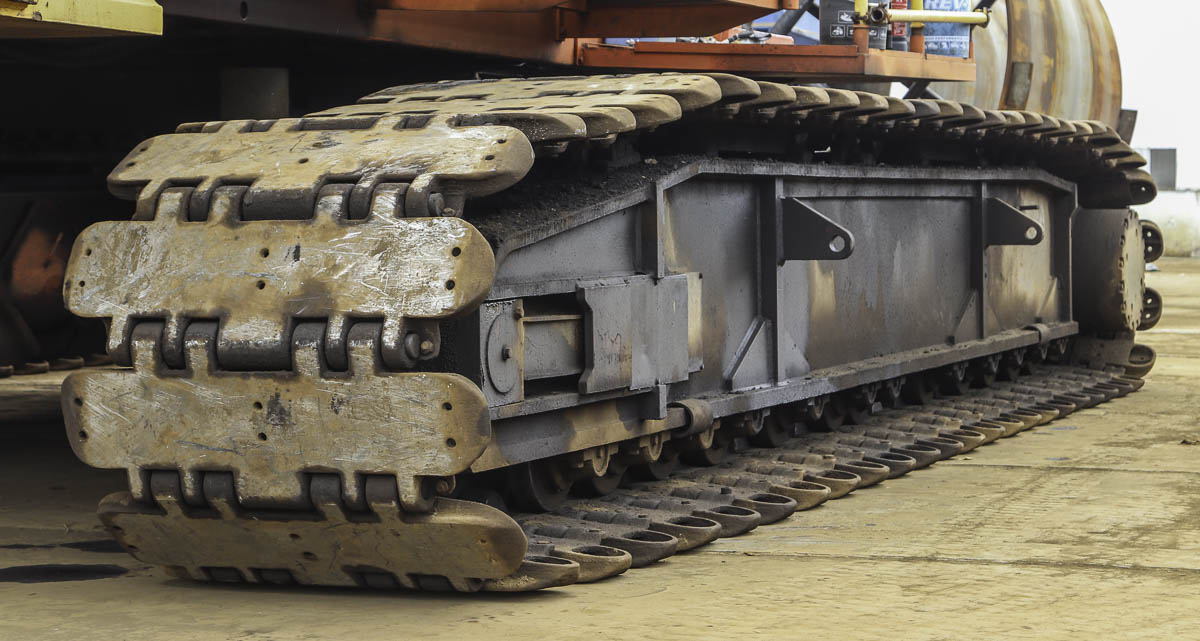

A single track is 8.37 meters long, 1.1 meters wide and 1.33 meters tall. The mass each is 20.4 tonnes.

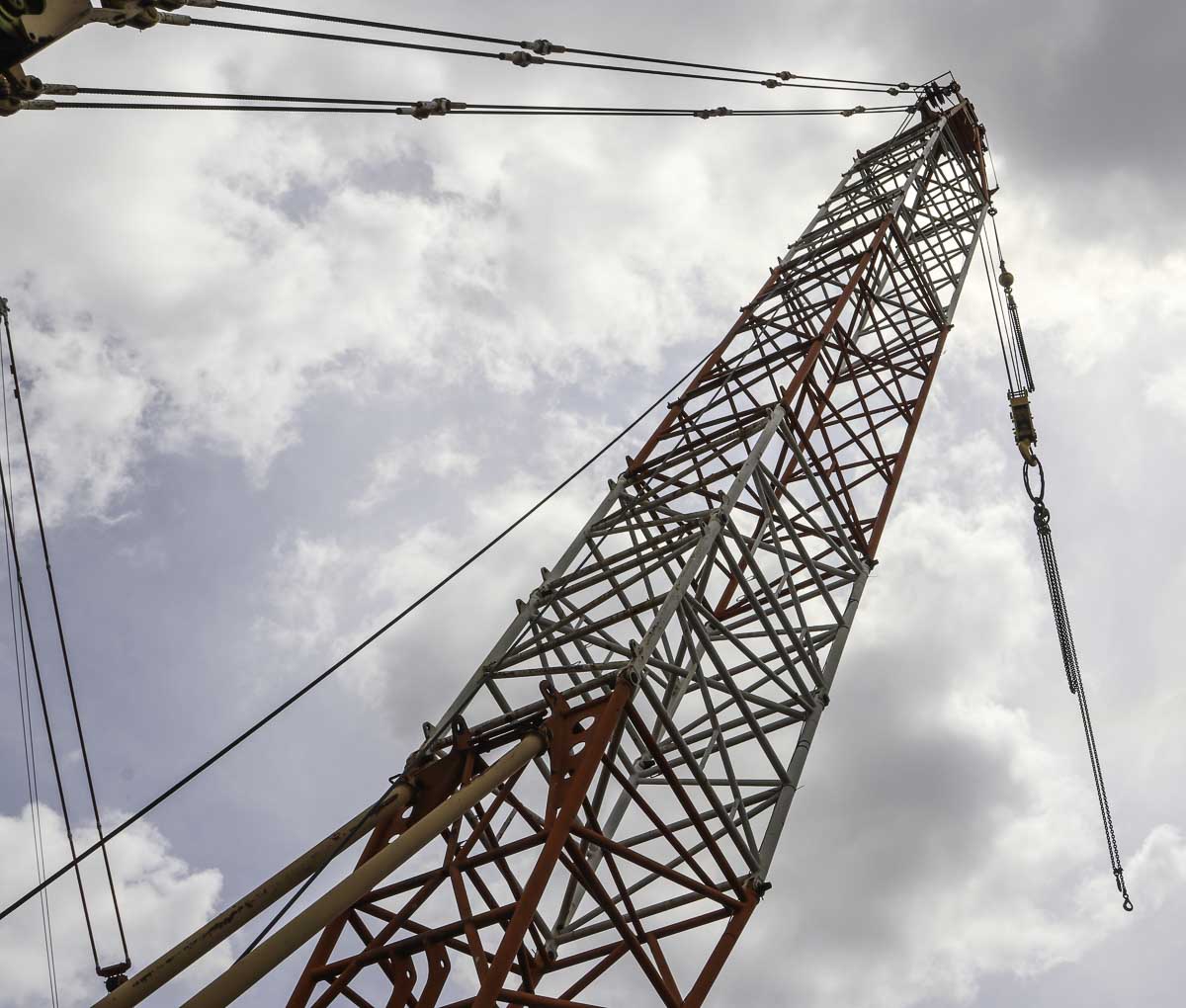

The main boom has a base length of 15.2 meters and can be extended to a maximum length of 81.2 meters. Optionally is it possible to install a maximum 31 meter long fixed jib to the main boom.
The crane is fitted with two 12.5-tonne hoist winches.

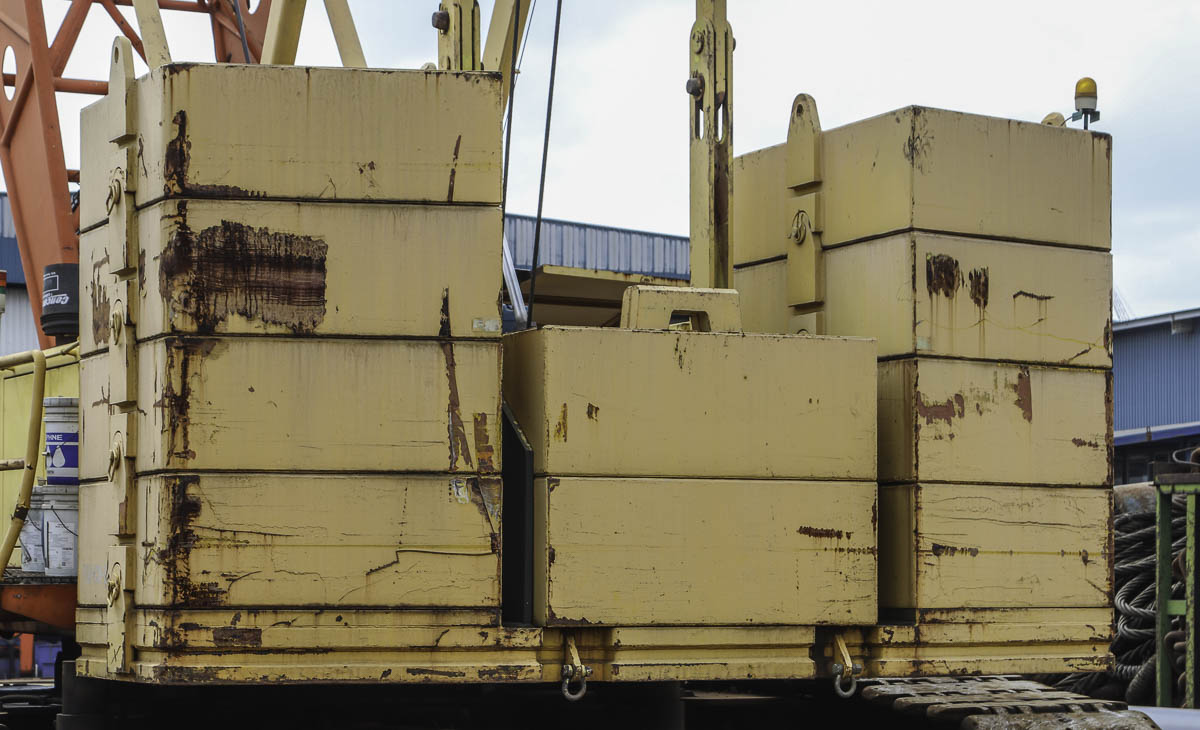

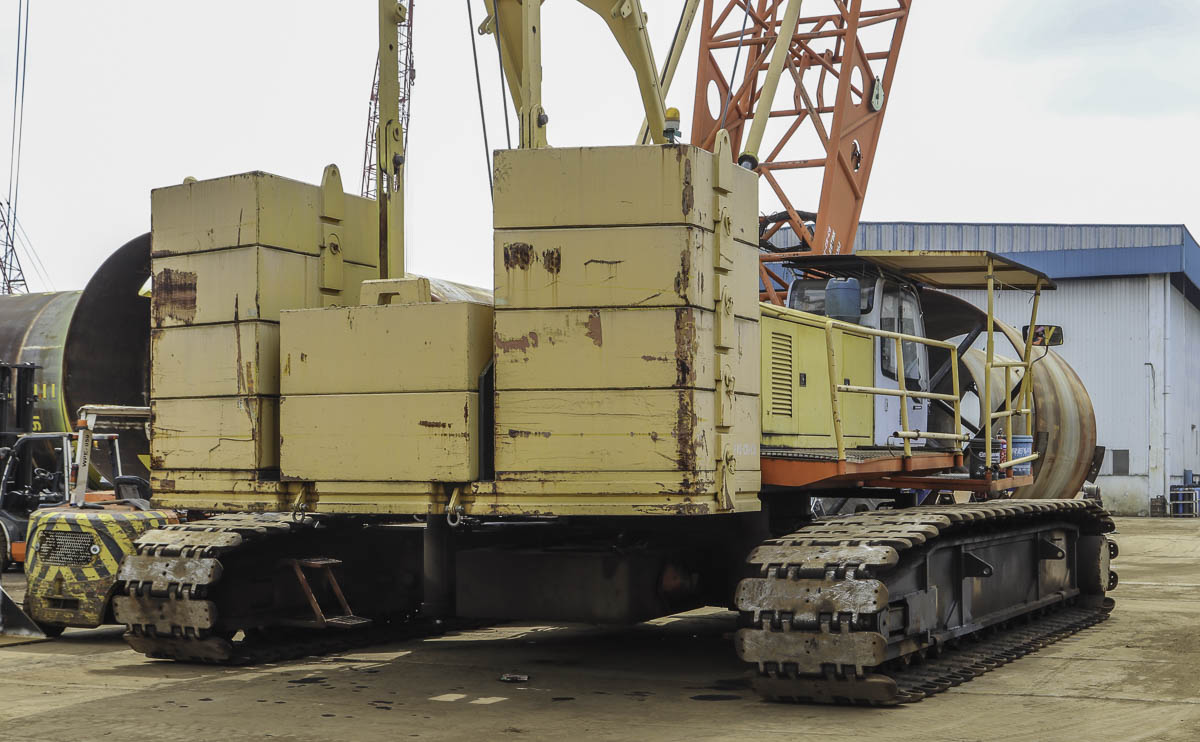

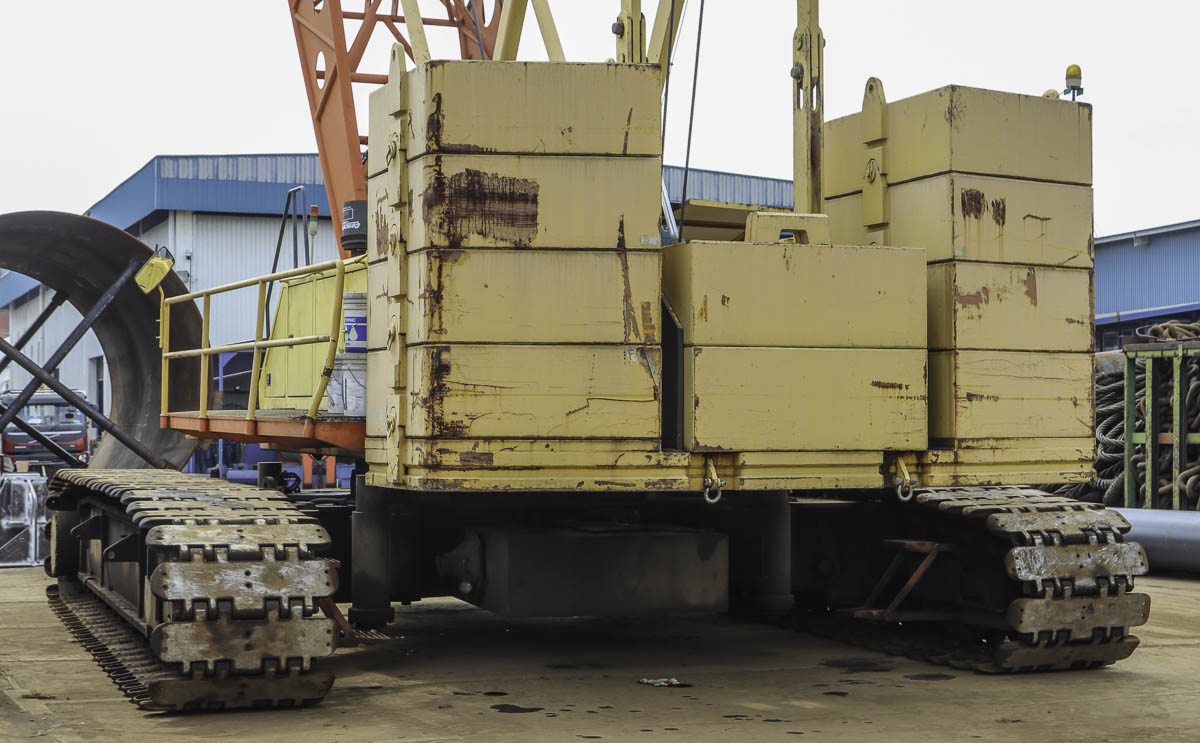

Attached to the superstructure is a total of 56 tonnes of counterweight. The counterweight exists in total out of eleven pieces.

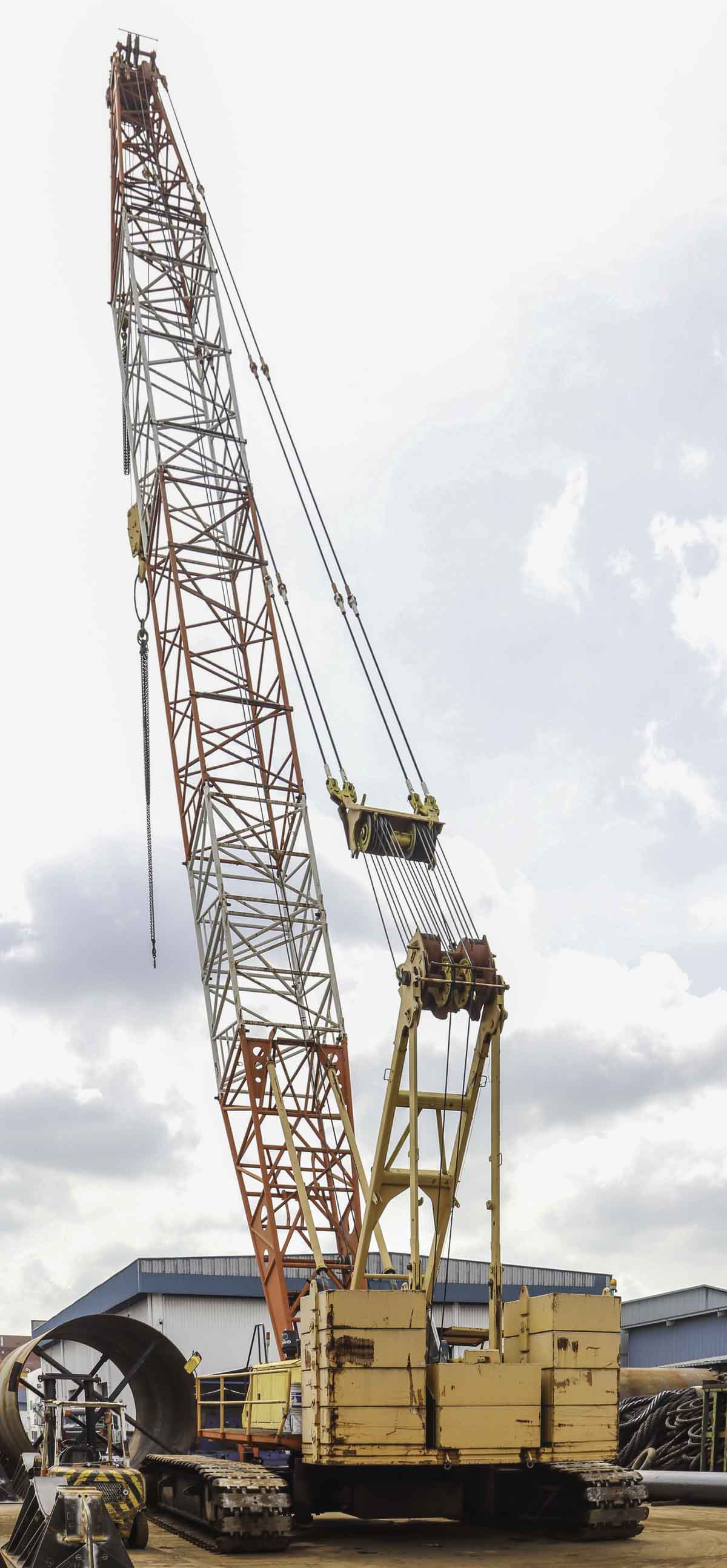

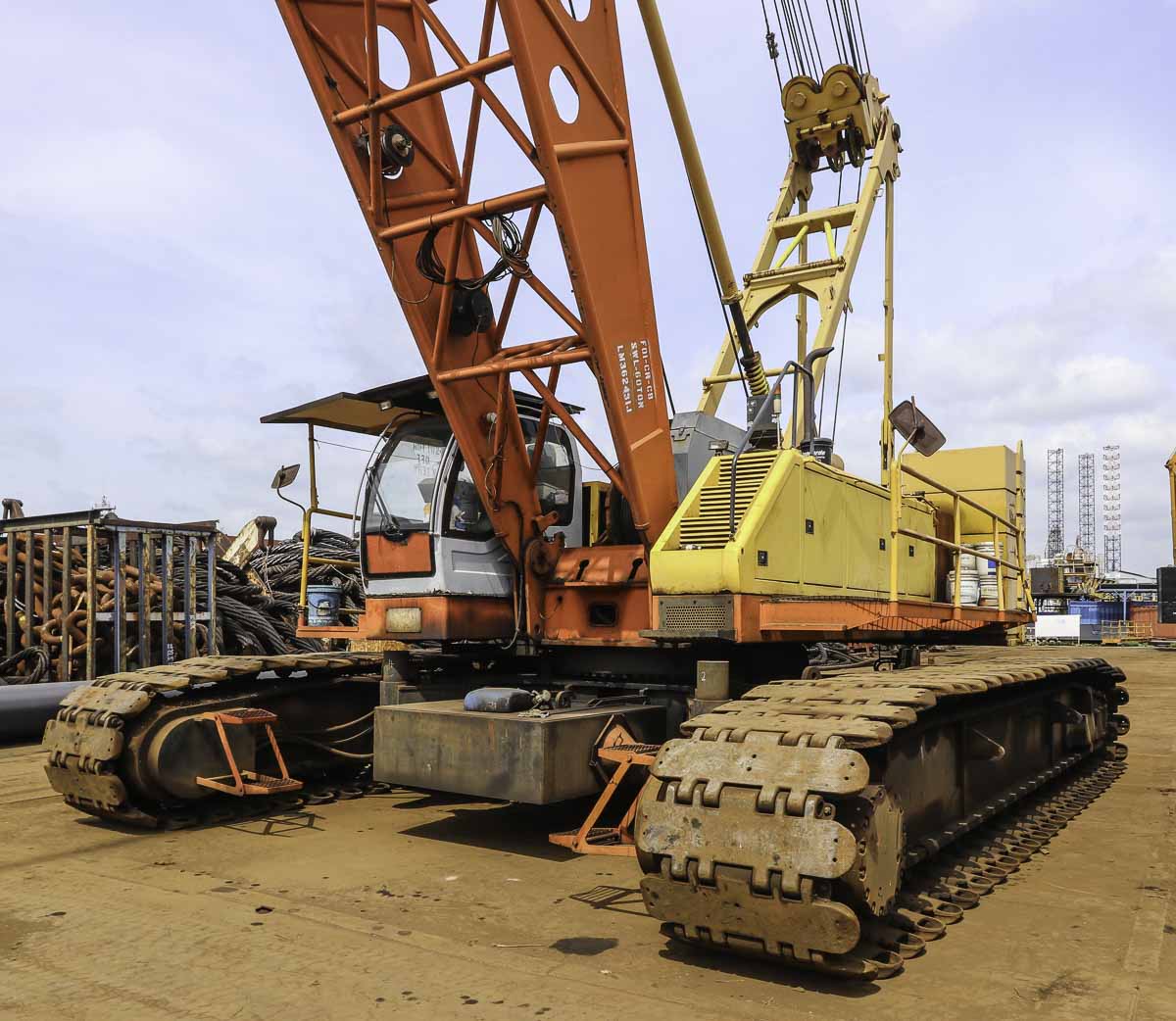

Here is the crane fitted with a 39.2 meter main boom.
A very interesting crane!
