IHI NIK900T - Antar
This interesting IHI NIK900T belongs to Antar from Singapore (SG). It is a 90-tonne crane with telescopic boom on crawler carrier.
The crane is powered by a HINO K13C-UV, a 12.9-litre 6-cylinder diesel engine with a power of 275 kW (374 hp).

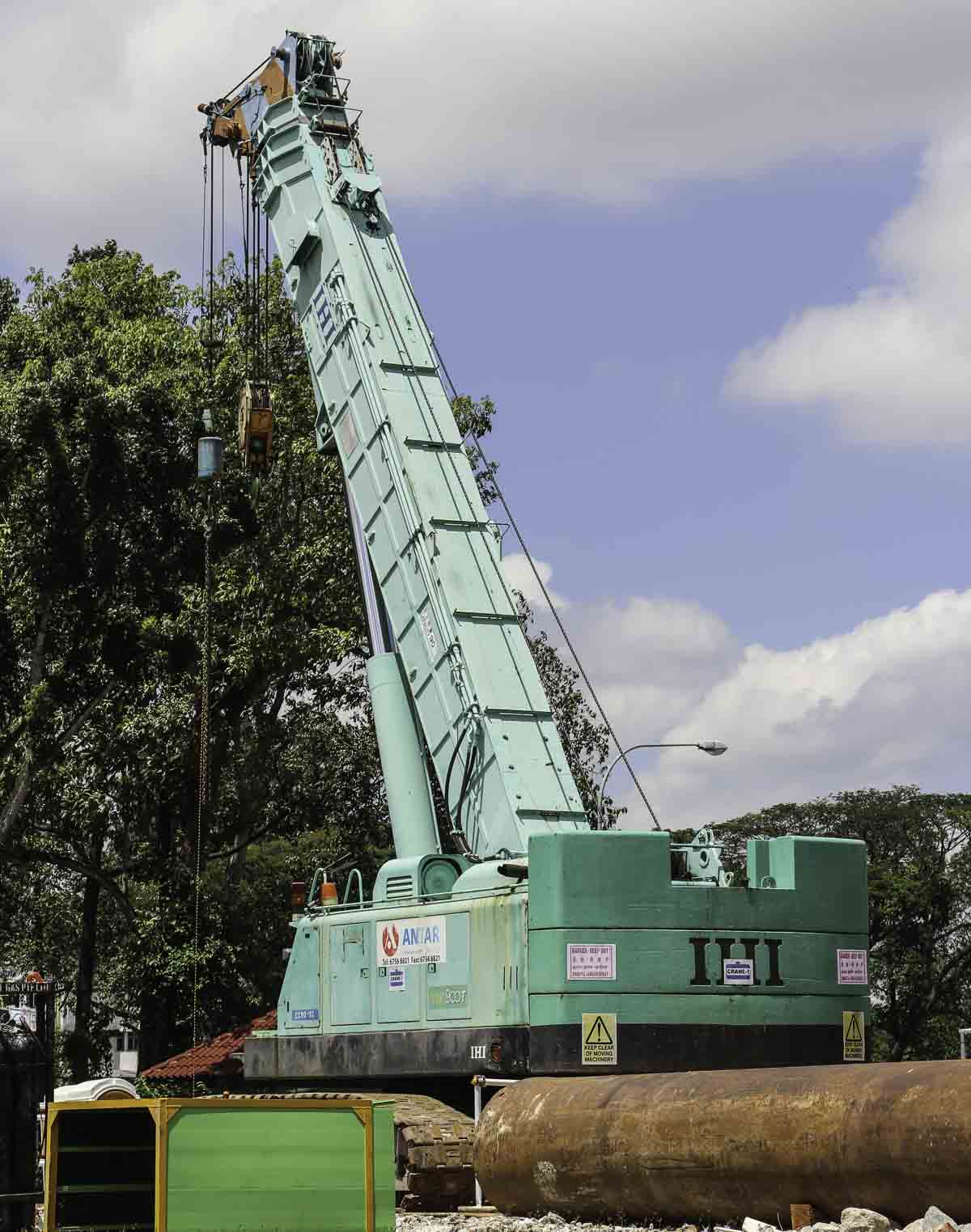

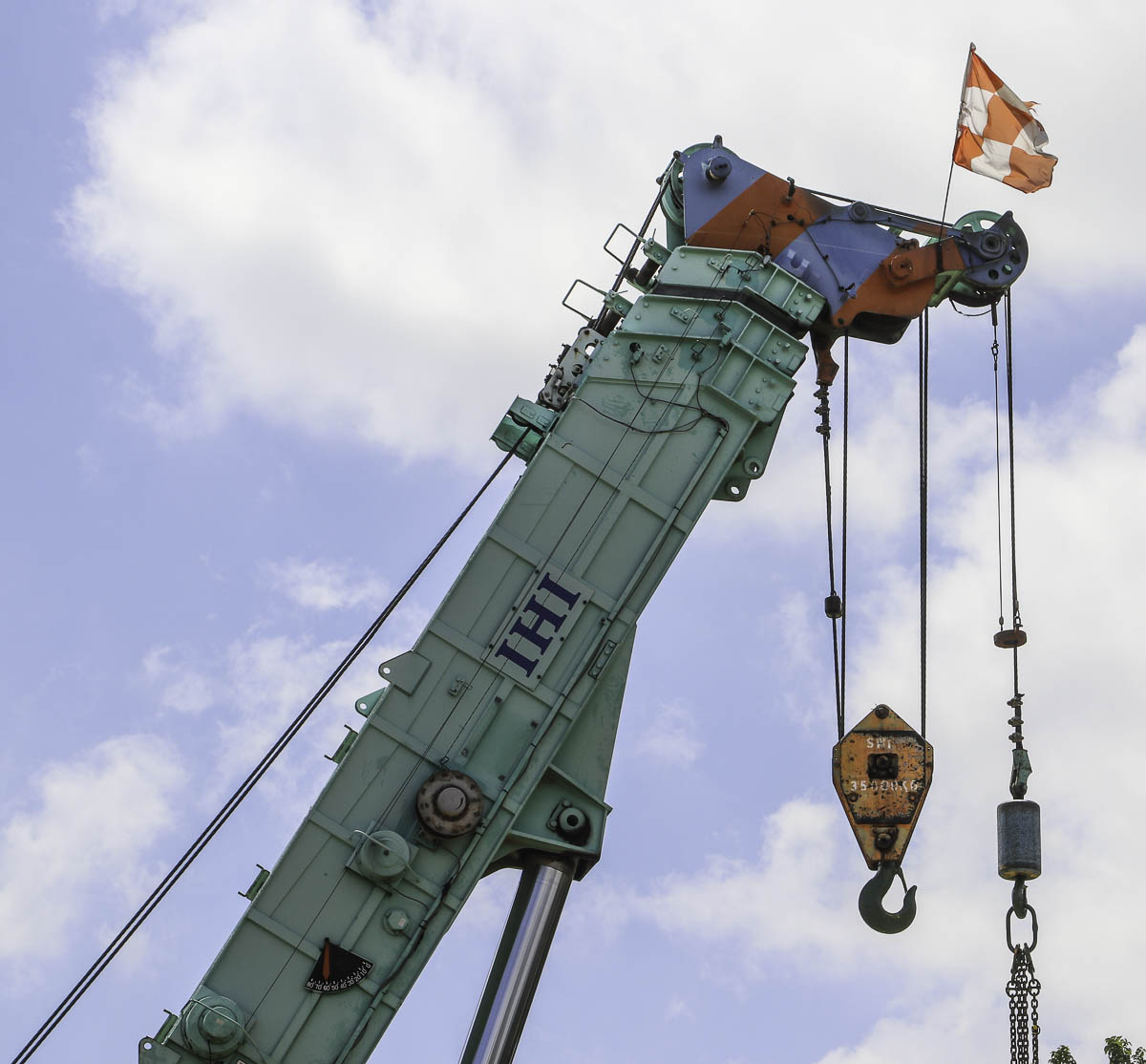

The crane is fitted with a four-part main boom. The base length is 10.5 meters and extends three times to a maximum length of 30.3 meters. The crane is fitted with two 7-tonne hoist winches, which are both in use here.

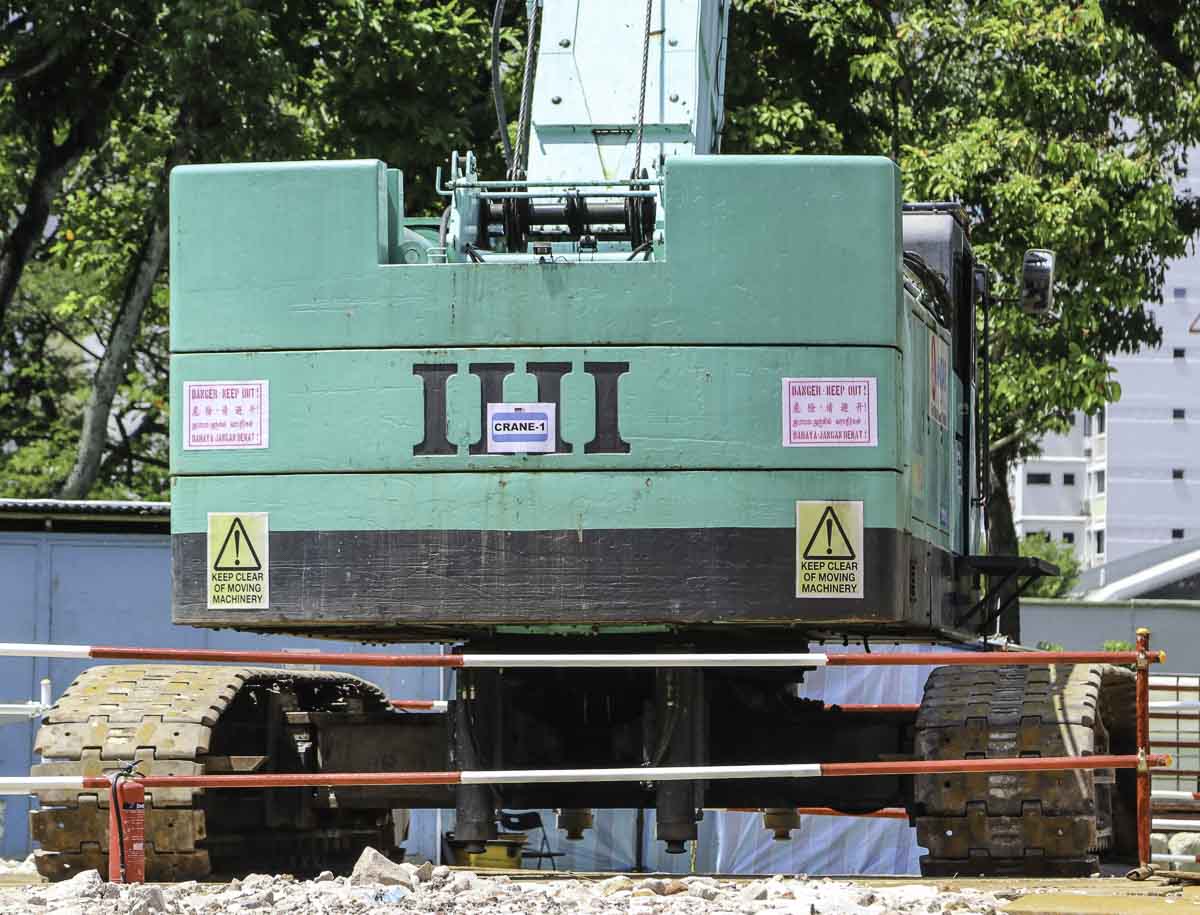

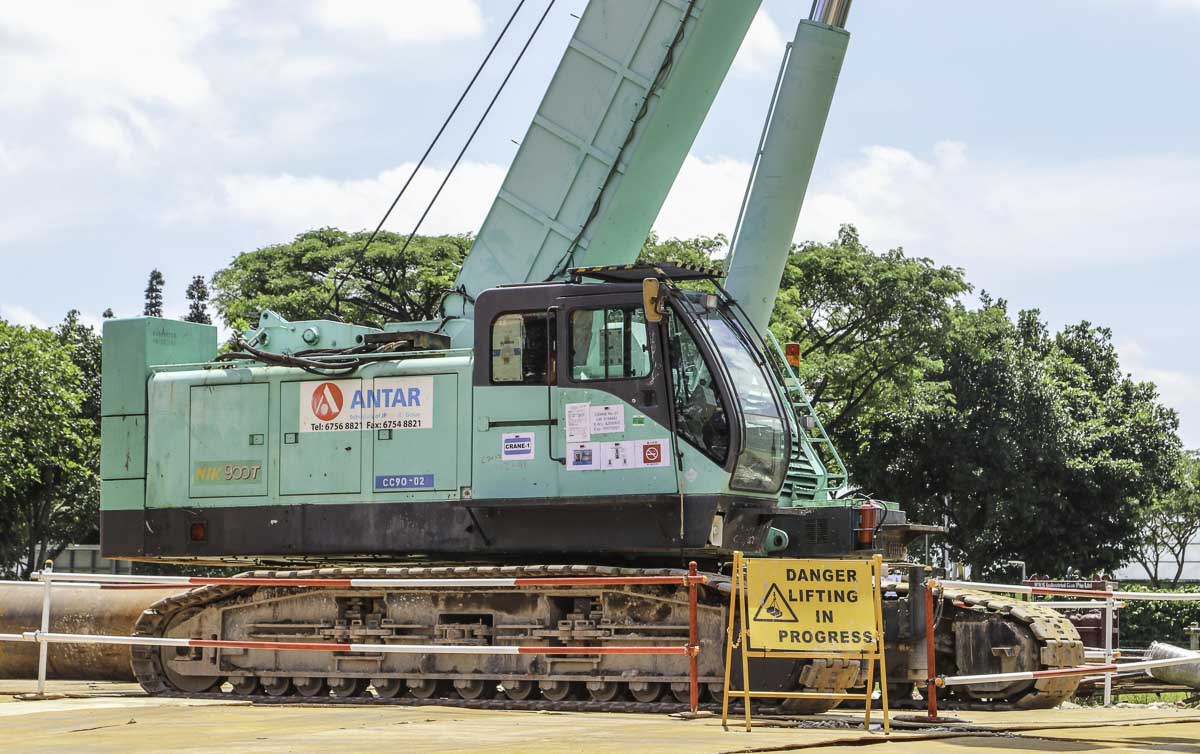

The carrier is 6.17 meters long and 4.8 meters wide. For the transport over the road is the width to be reduced to 3.2 meters. Attached to the superstructure is the counterweight with a mass of 24.5 tonnes, the counterweight has a 4.4 meter tailswing.

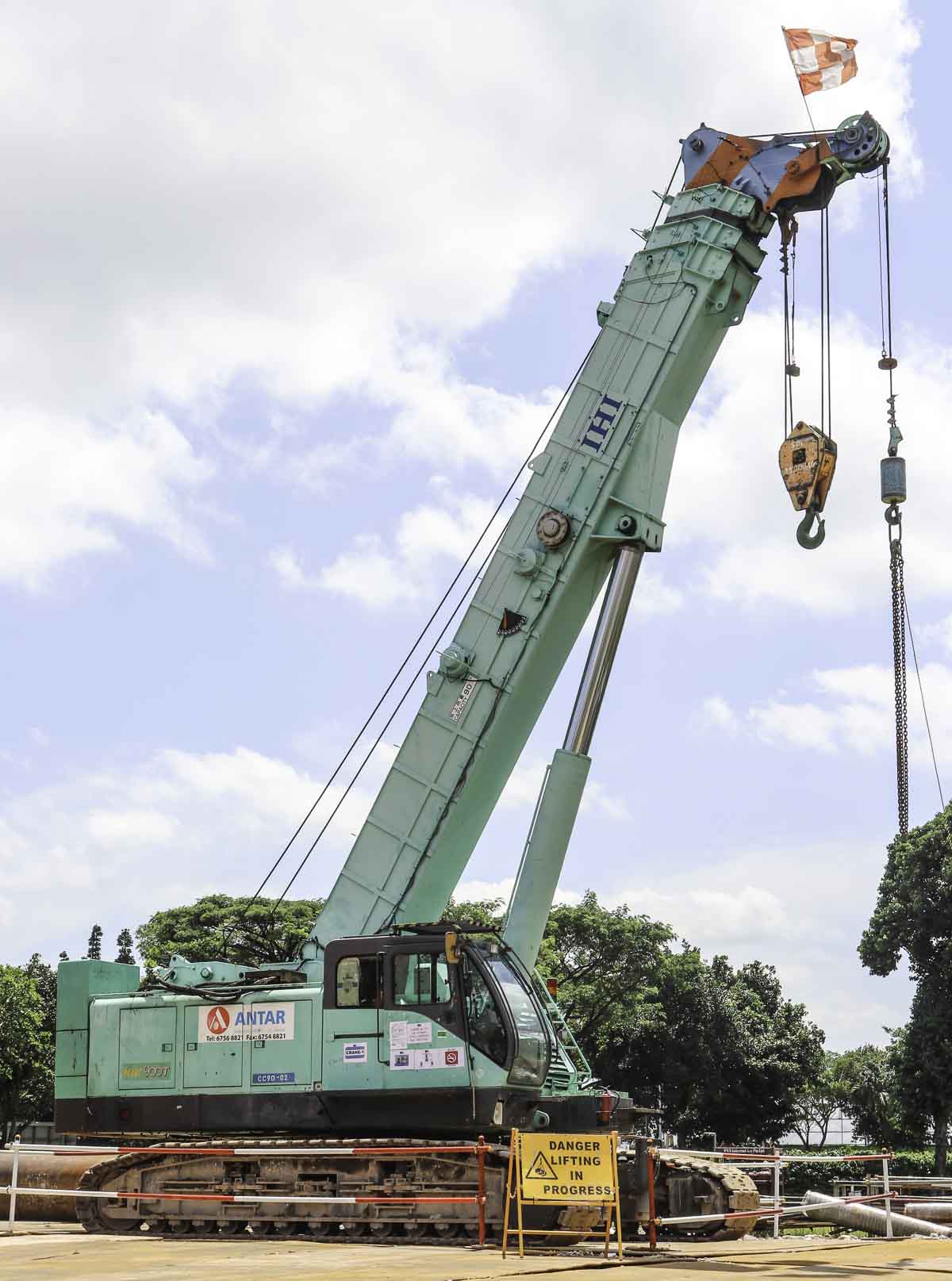

The crane was used as assist crane for a foundation rig. The maximum load of 90 tonnes is lifted at a three meter radius. When the boom is fully extended is the crane able to still hoist 26 tonnes on an eight meter radius.
A very sharp and strong crane of Antar!
