Kobelco 7080 - AMOS

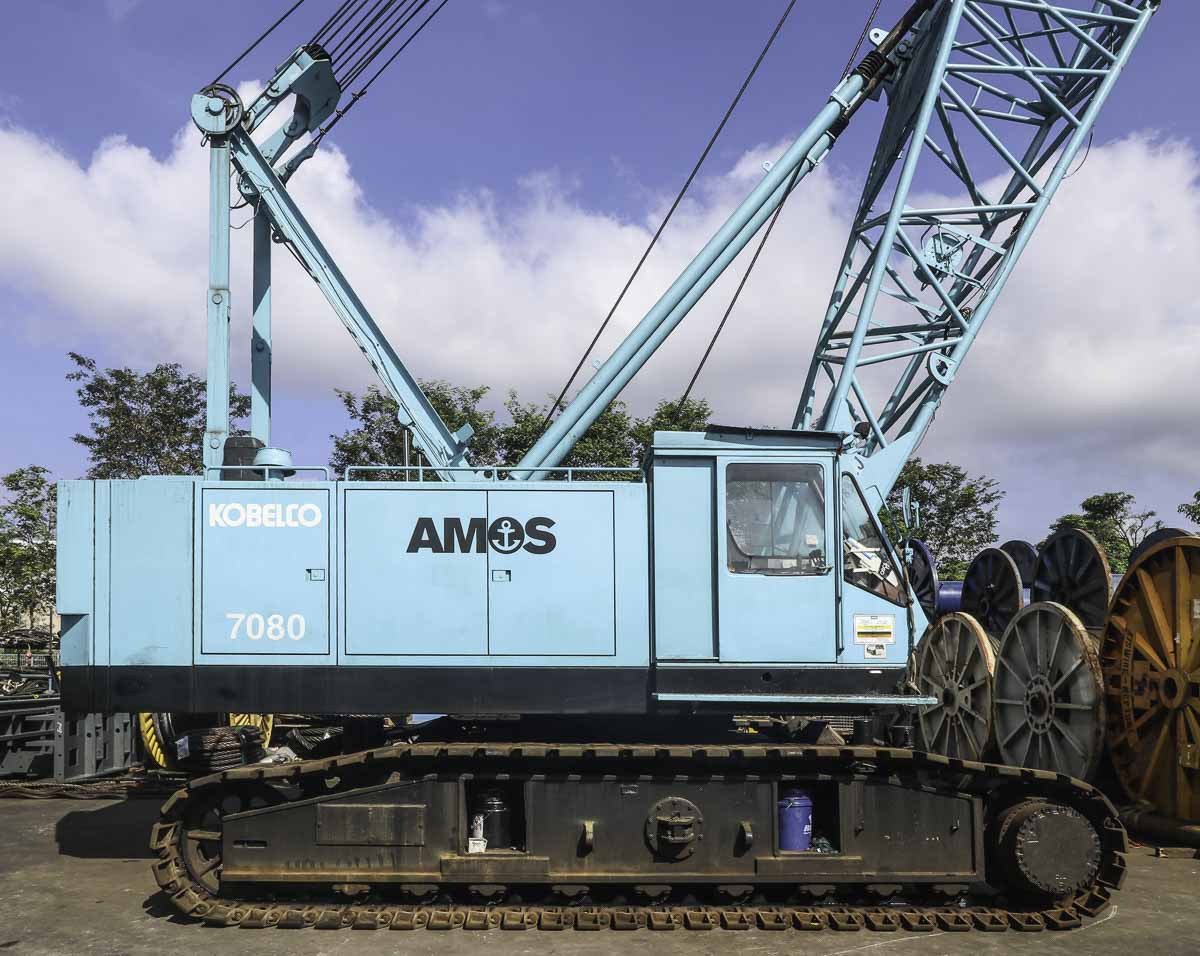

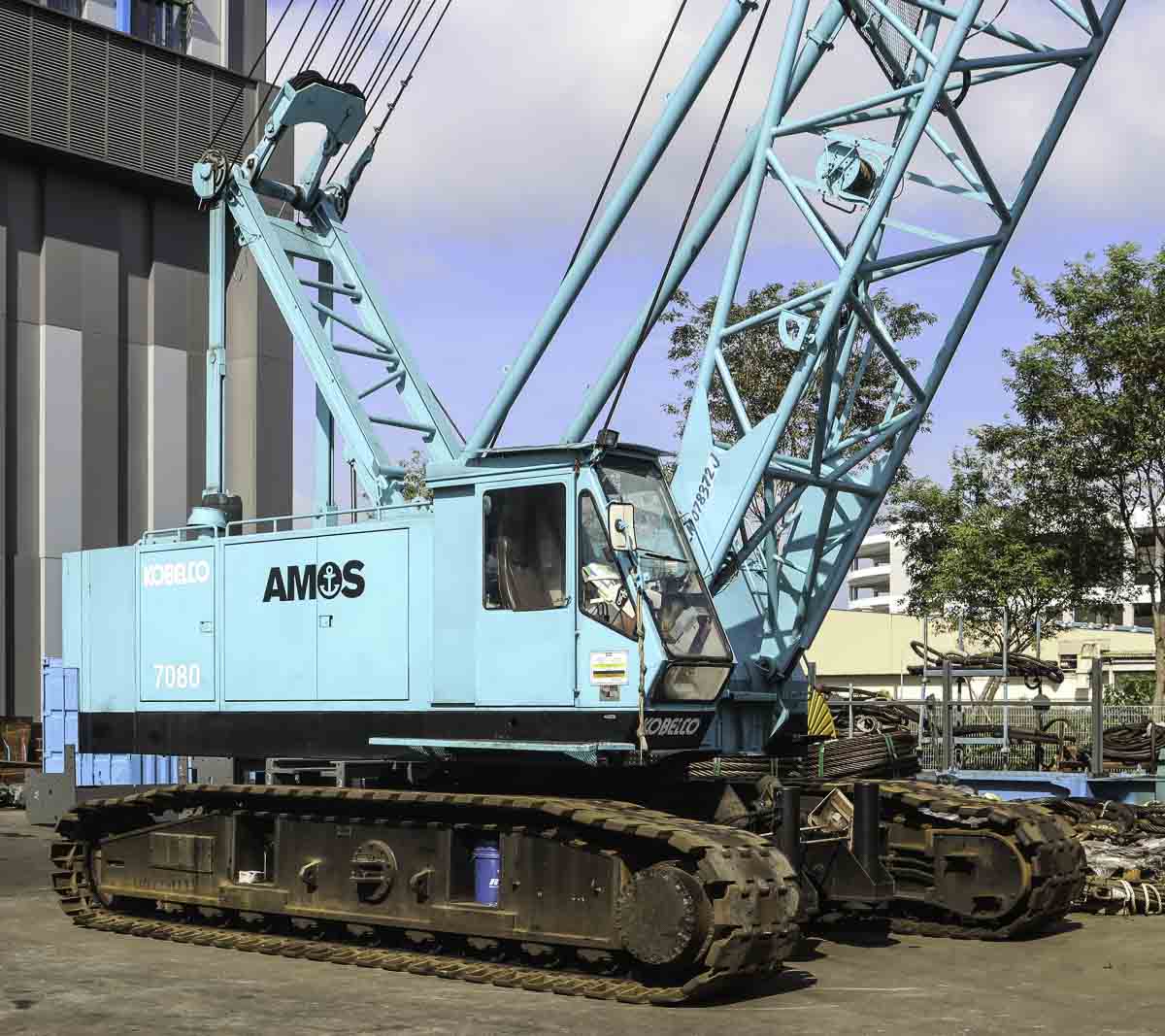

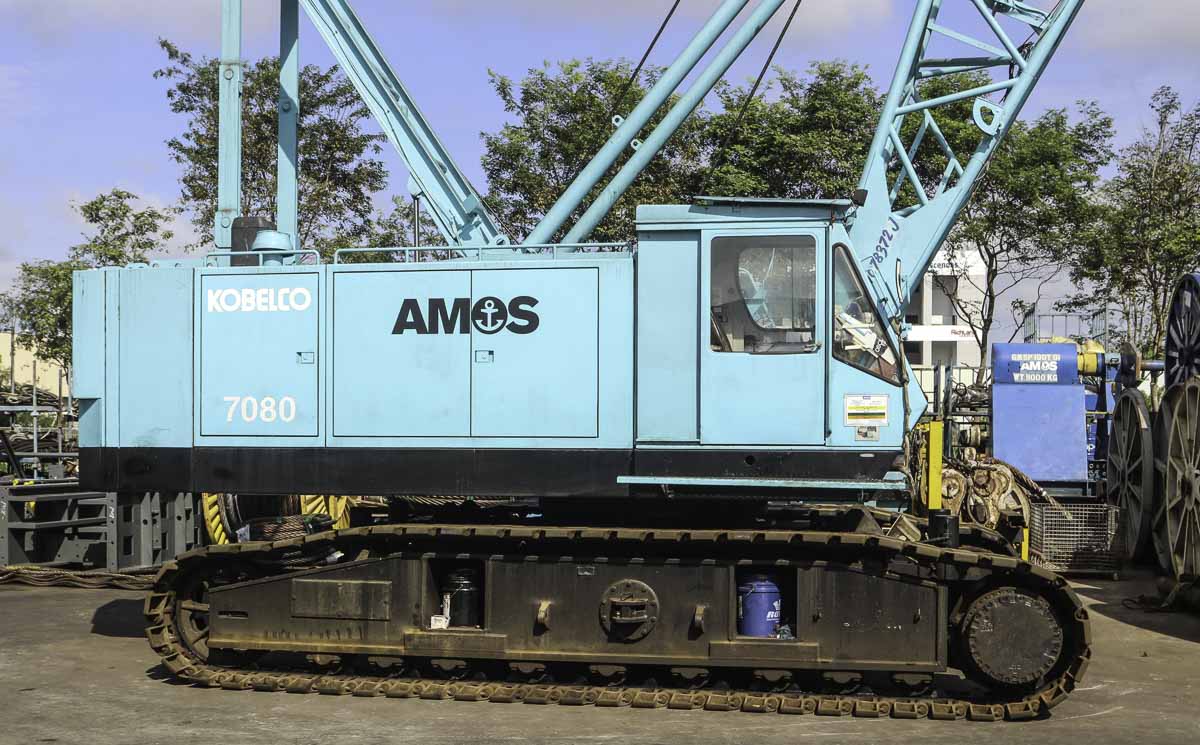

This sharp Kobelco 7080 belongs to AMOS from Singapore (SG) and was used on their yard. It is an 80-tonne crawler crane with year of manufacture 1996.

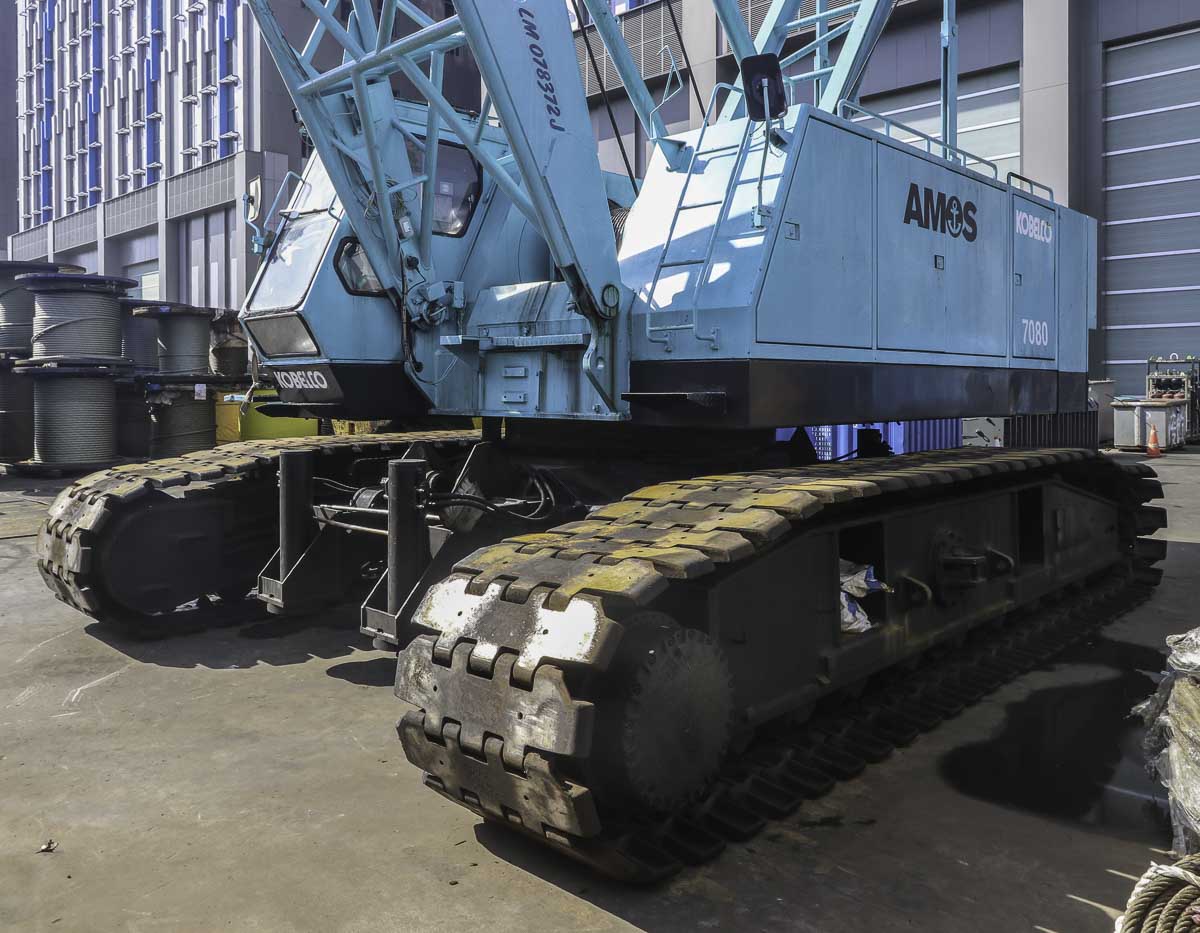

The undercarriage of the crane is 6.22 meters long and 4.9 meters wide. For the transport over the road is the width to be reduced to 3.5 meters only.
The crane is powered by a Mitsubishi 6D22CT, an 11.15-litre 6-cylinder diesel engine with a power of 180 kW (245 hp). The diesel engine powers in total four hydraulic pumps.
The A-frame has in crane operation a maximum height of 6.3 meters, for the transport over the road is it possible to fold the A-frame down.

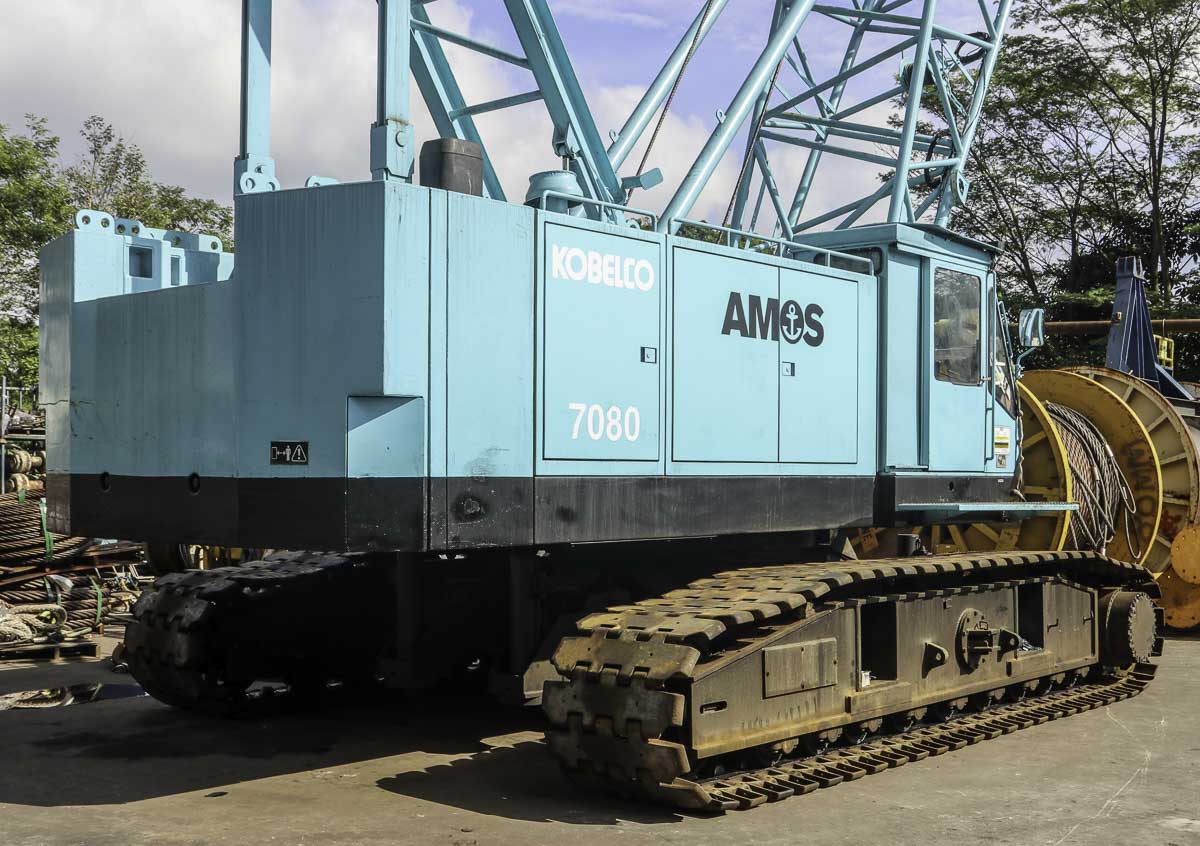

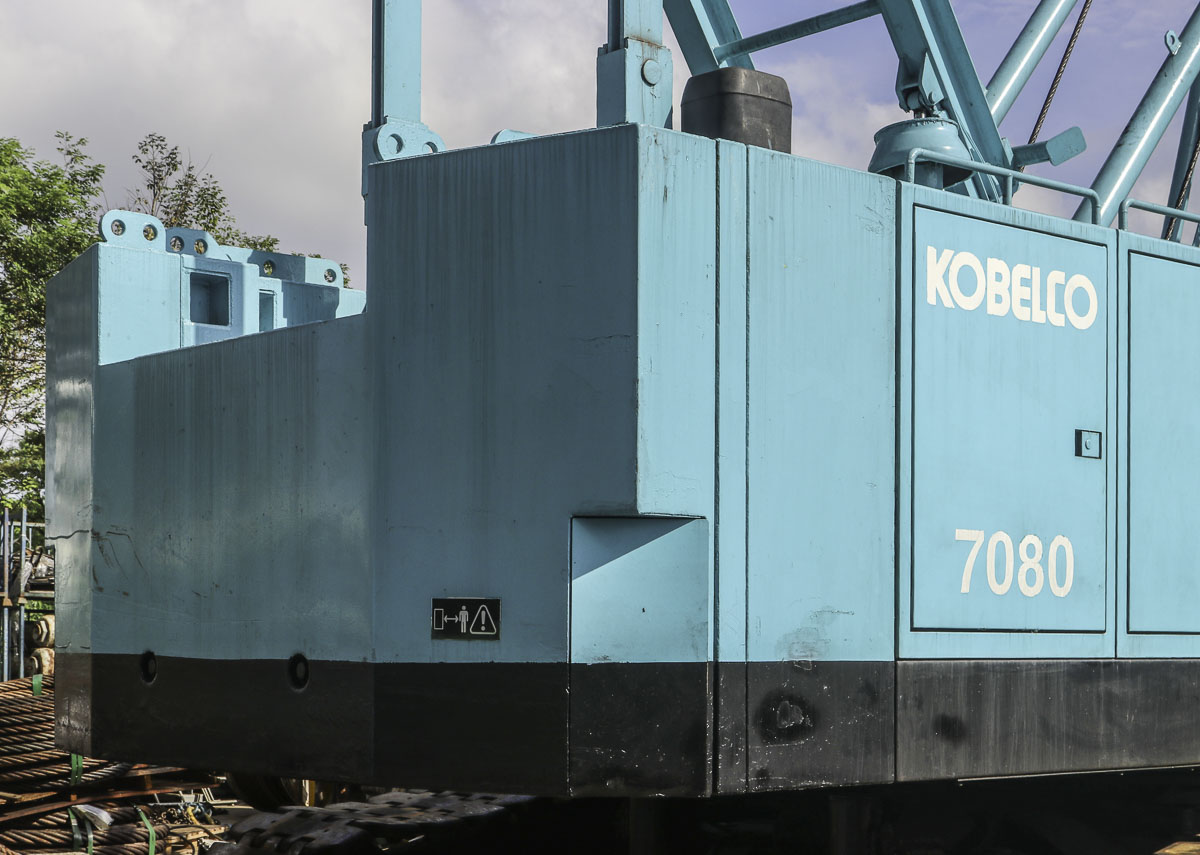

Attached to the superstructure is a three-part counterweight with total mass of 23.5 tonnes. The counterweight has a 4.5 meter tailswing.
The crane is fitted with two 10-tonne hoist winches with a 26 mm hoist wire rope.

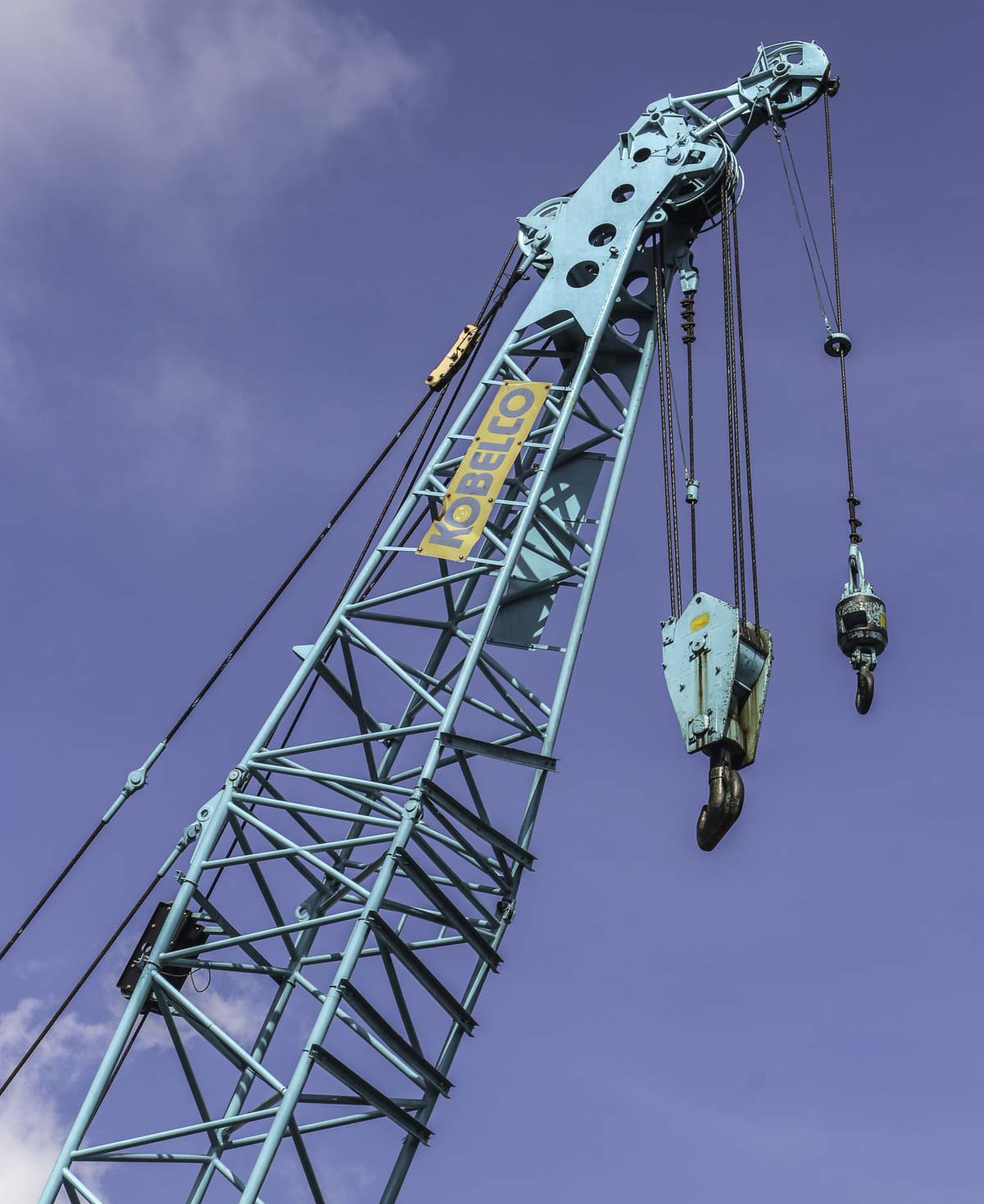

The main boom has a 12.19 meter base length and has a maximum length of 57.91 meters. This crane has both hoist winches in use.
This crane was fitted with a 21.34 meter long main boom, in this configuration has the crane a maximum lifting capacity of 50.7 tonnes at a 5.5 meter radius or 8.5 tonnes to a 20 meter radius. A very sharp crane of AMOS!
