Liebherr LTM 1350-6.1 - Bok Seng

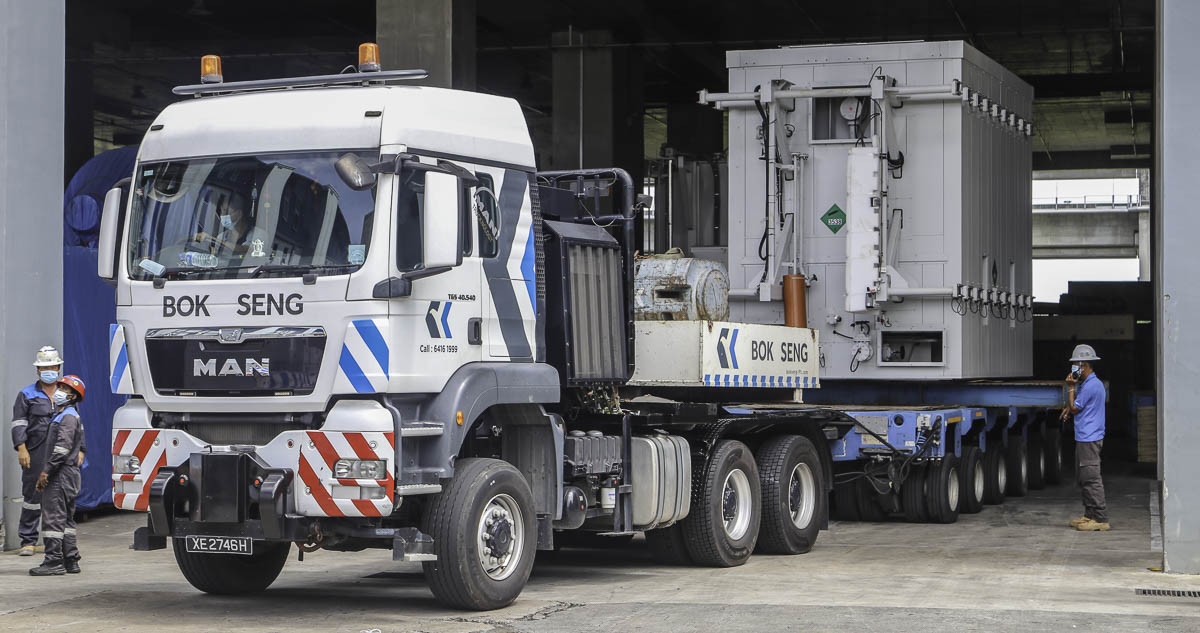

To lift a skid ont he yard of Bok Seng in Singapore (SG) would the Liebherr LTM 1350-6.1 be used. One of the MAN TGS 40.540 will be used to tow a 6-axle Scheuerle platform trailer.

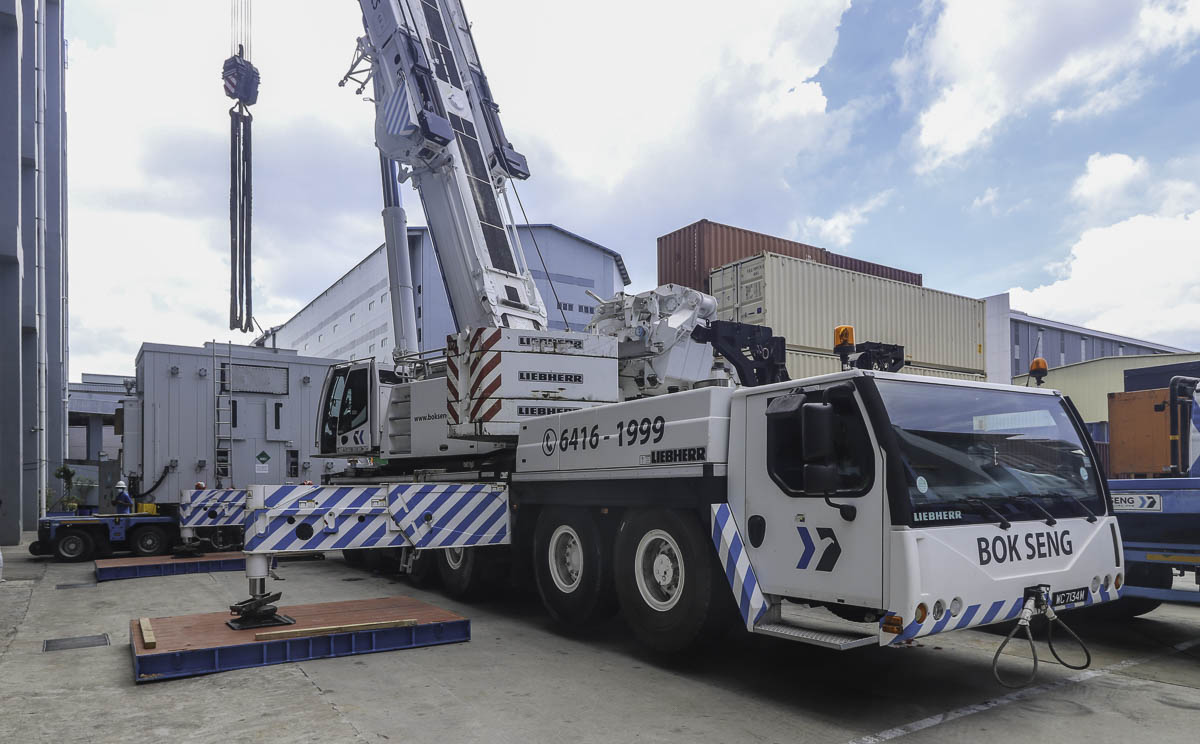

The cargo will be parked behind the crane. The Liebherr LTM 1350-6.1 is fitted with 60 tonnes of counterweight.

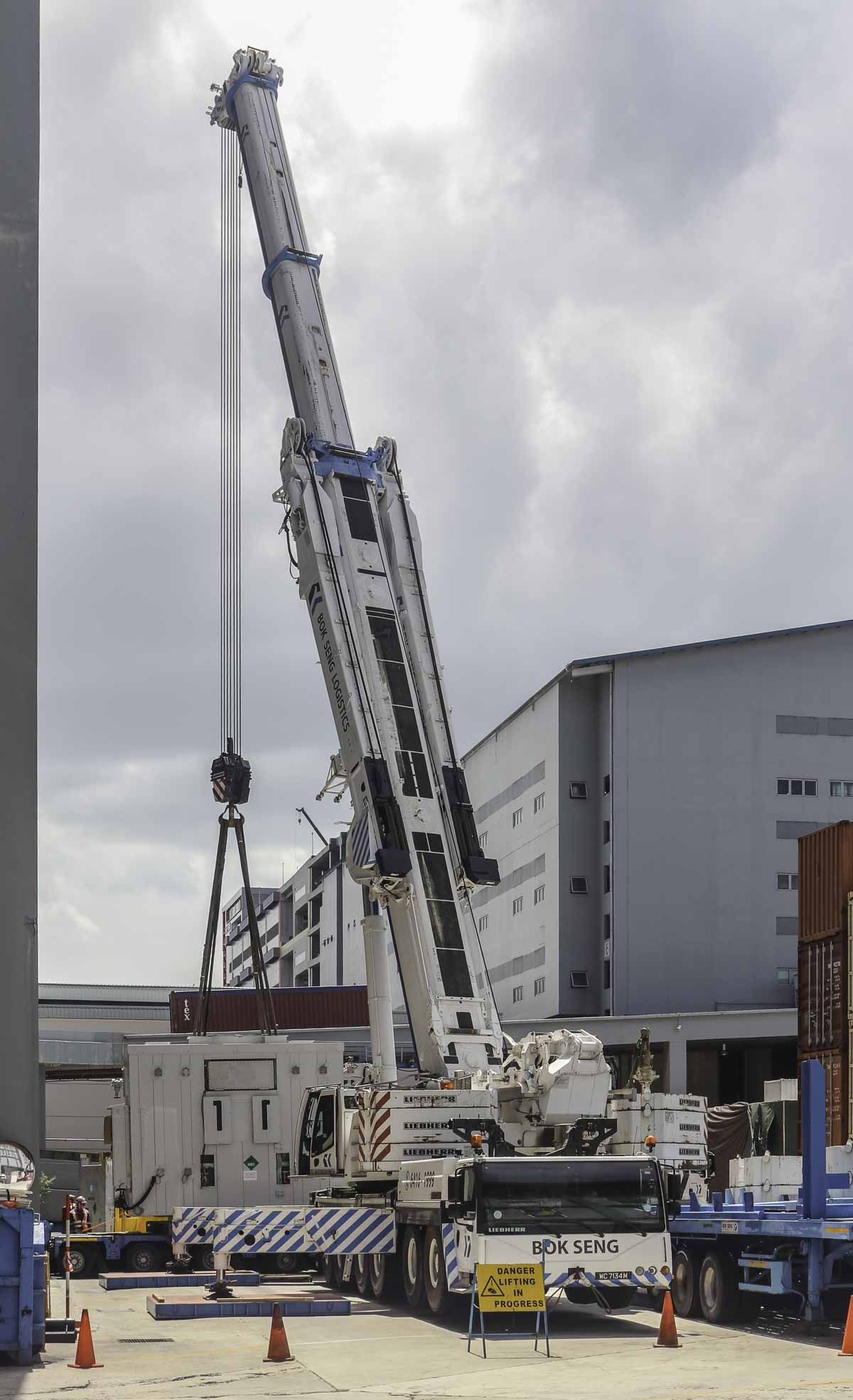

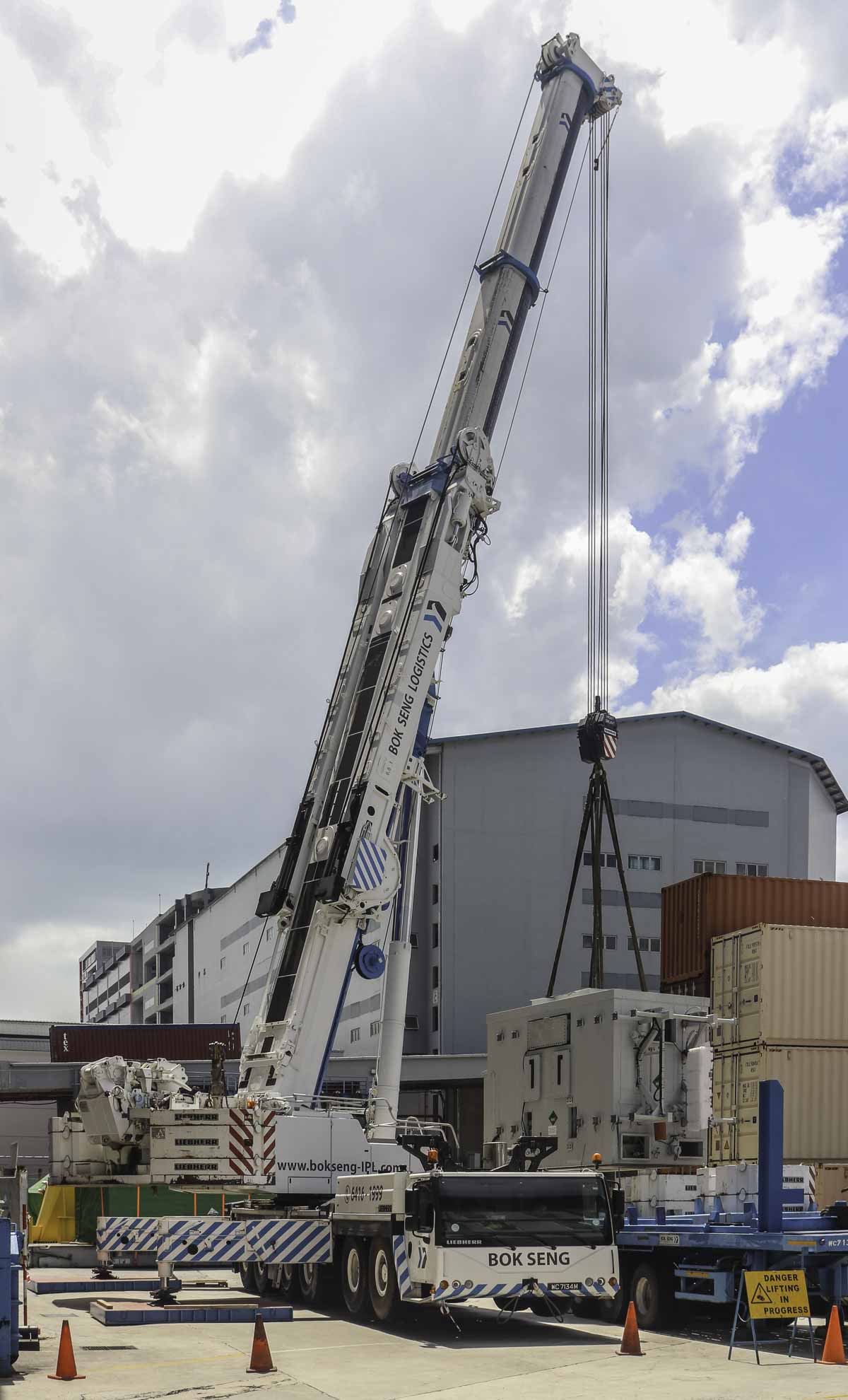

Here is the load hooked on and can be lifted. The main boom is extended to a length of 25 meters.

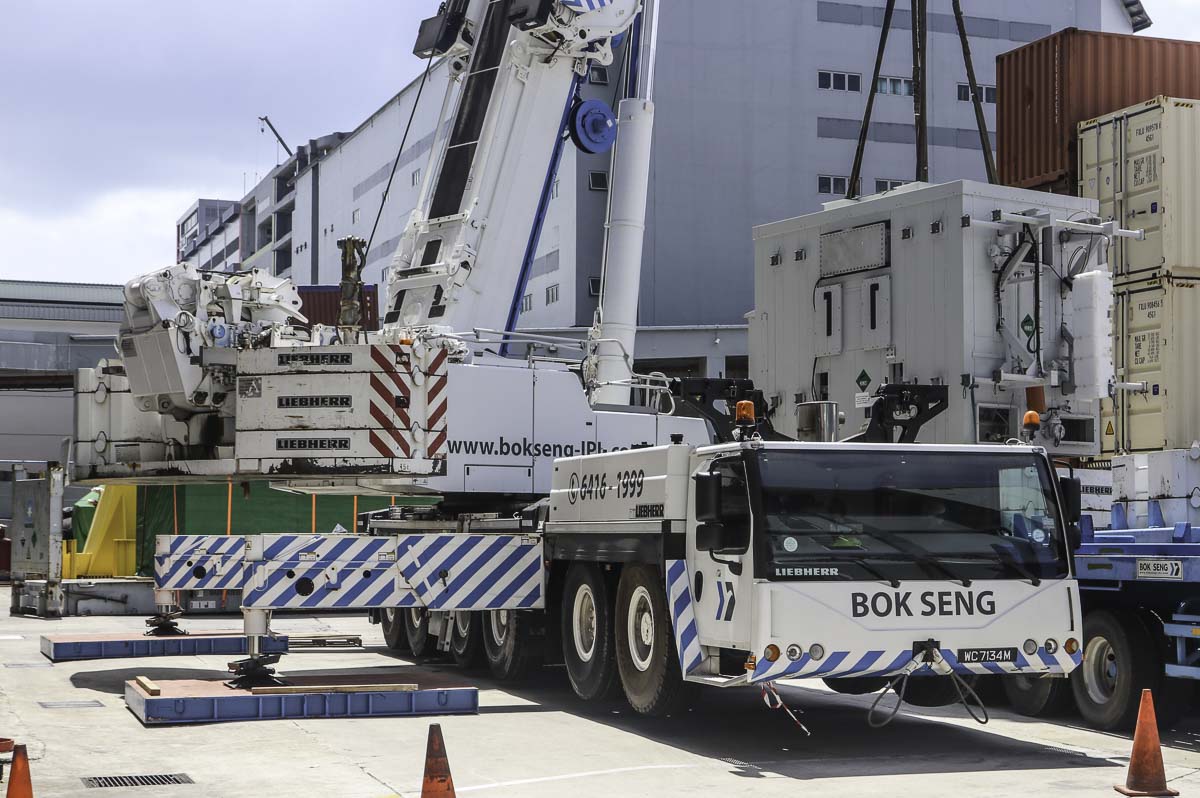

After picking up the load the crane slews to the right, the trailer drives away and will be reconfigured. The cargo weights around 50 tonnes.

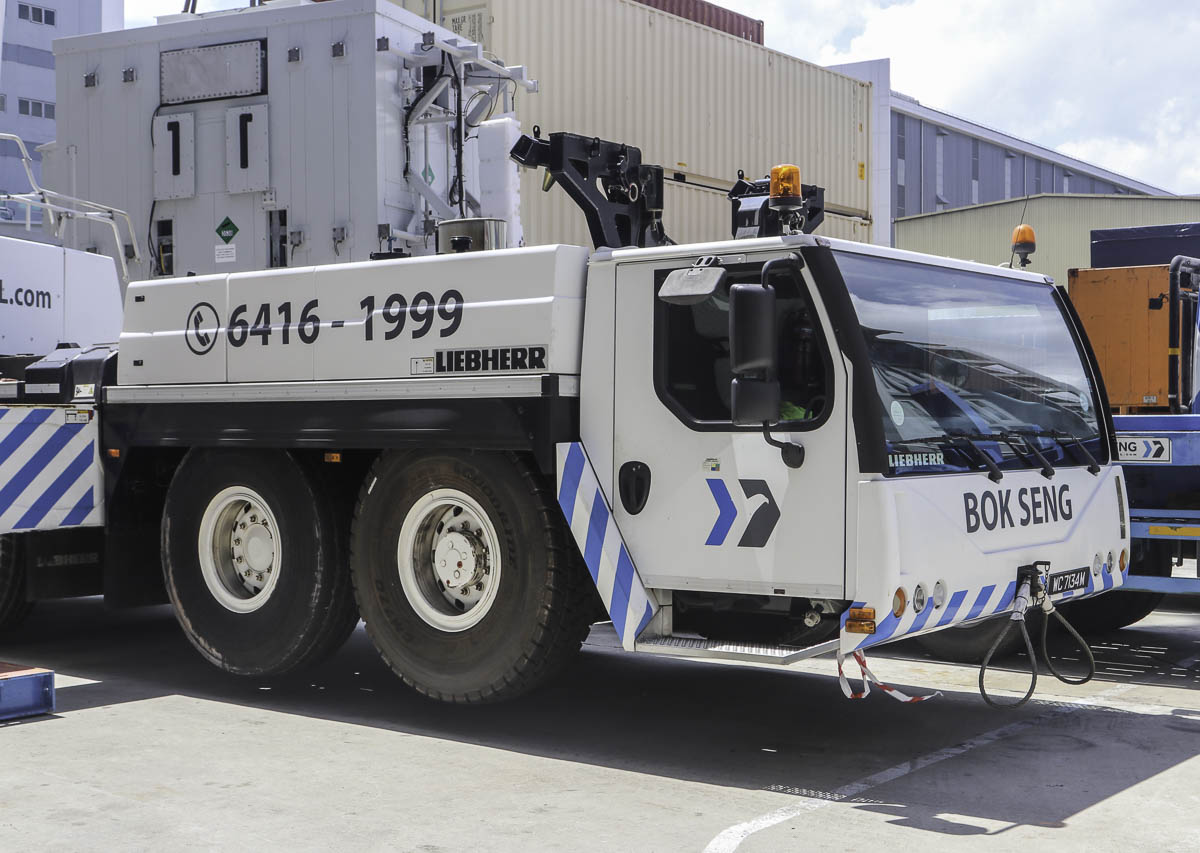

The 6-axle carrier is powered by a Liebherr 8-cylinder diesel engine with a power of 450 kW (612 hp). The axles 1, 3 and 5 are powered, all axles are steerable.

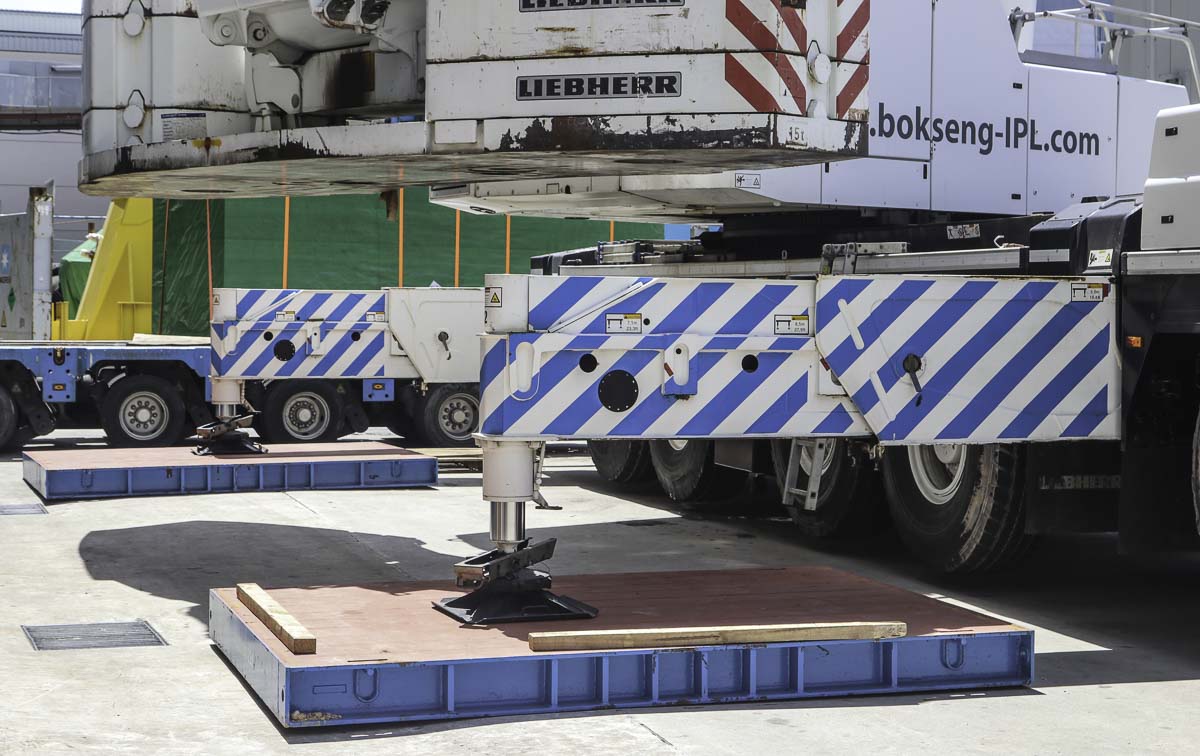

The full outrigger base measures 8.93 x 8.53 meters.

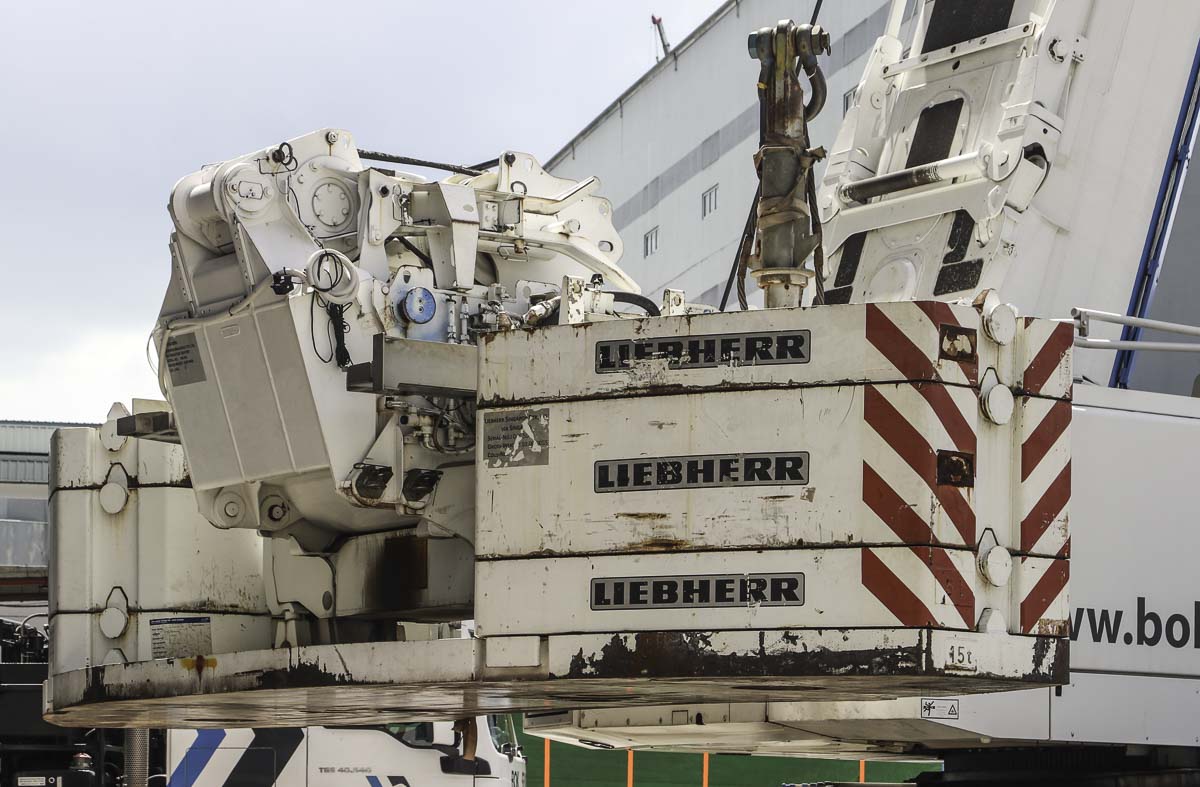

Attached to the superstructure was a counterweight of 60 tonnes, the full counterweight is 140 tonnes. The tailswing of the counterweight is 5.7 meters.

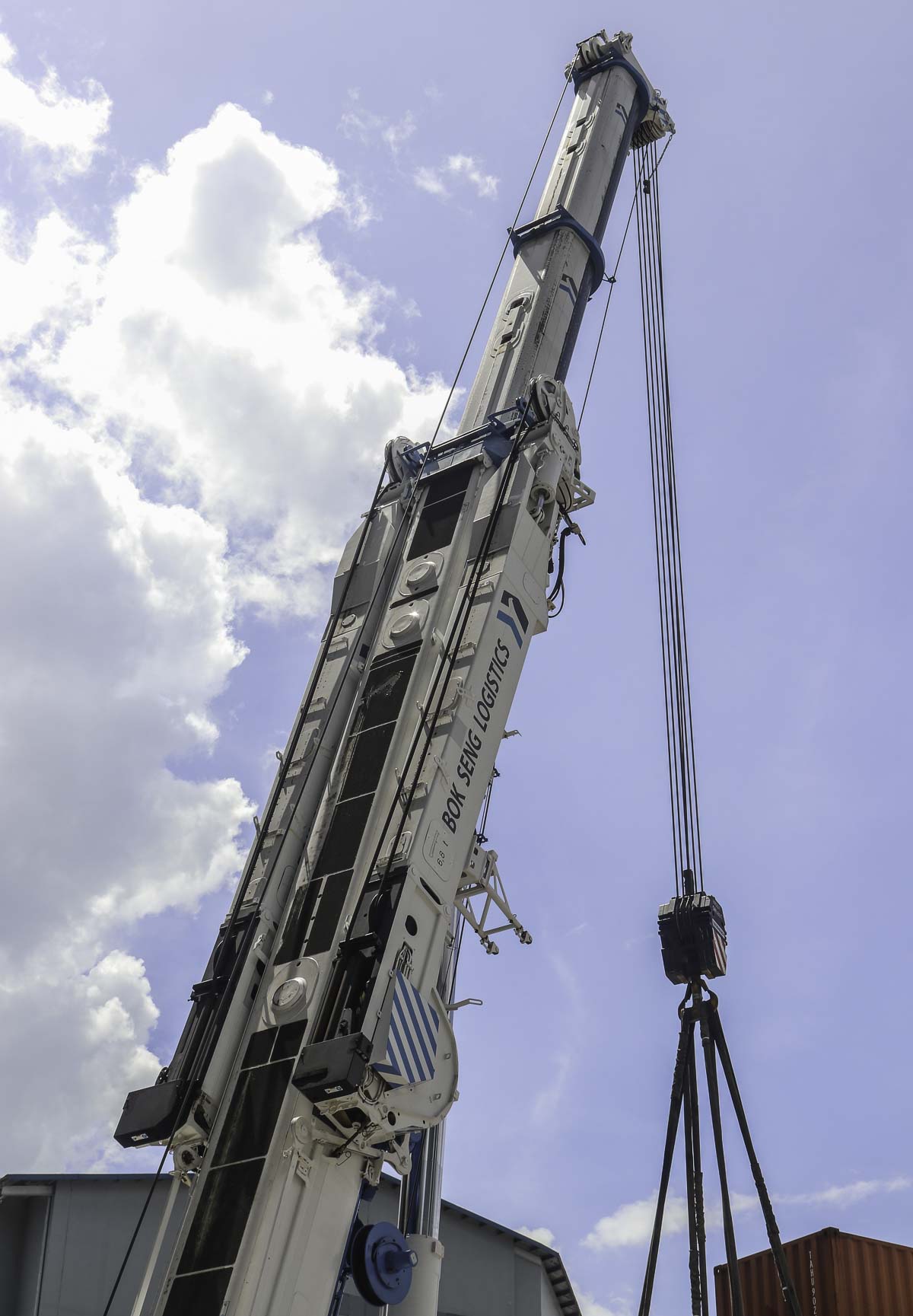

The crane is fitted with a six-part main boom with a 14.9 meter base length and a maximum length of 70 meters. Here is the boom extended to a length of 25 meters. Optionally is it possible to use the superlift.

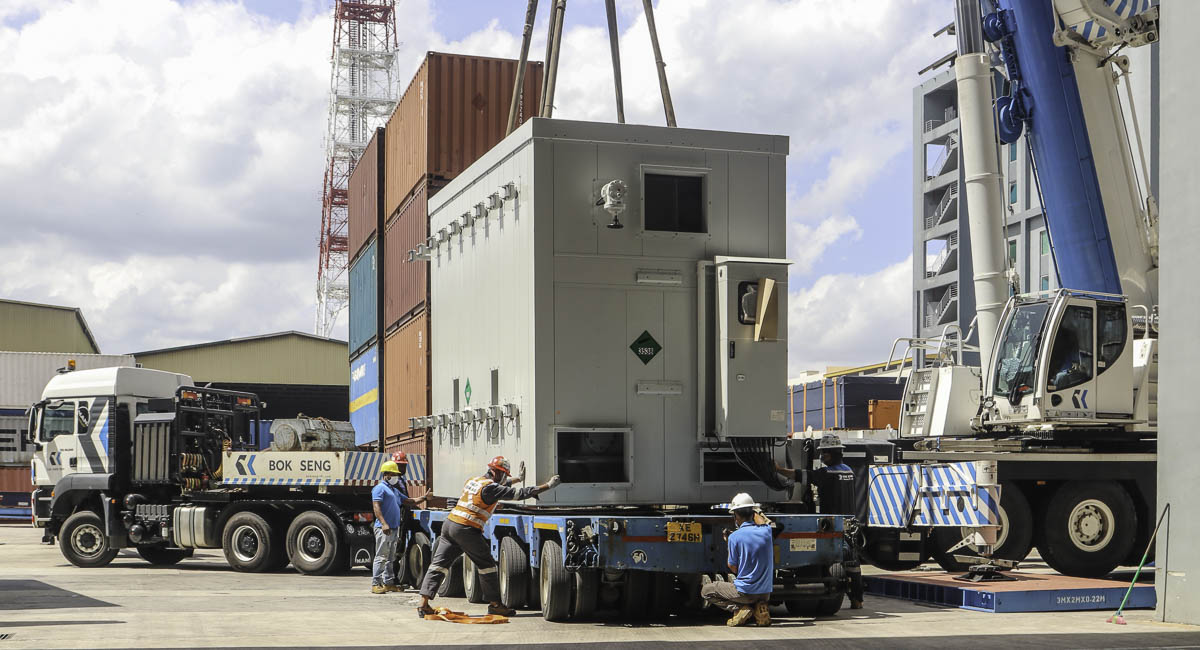

Here is the trailer back and the cargo will be loaded again. A funny and quick job done by Bok Seng!
