Liebherr LTM 1100-4.2 - Peck Tiong Choon

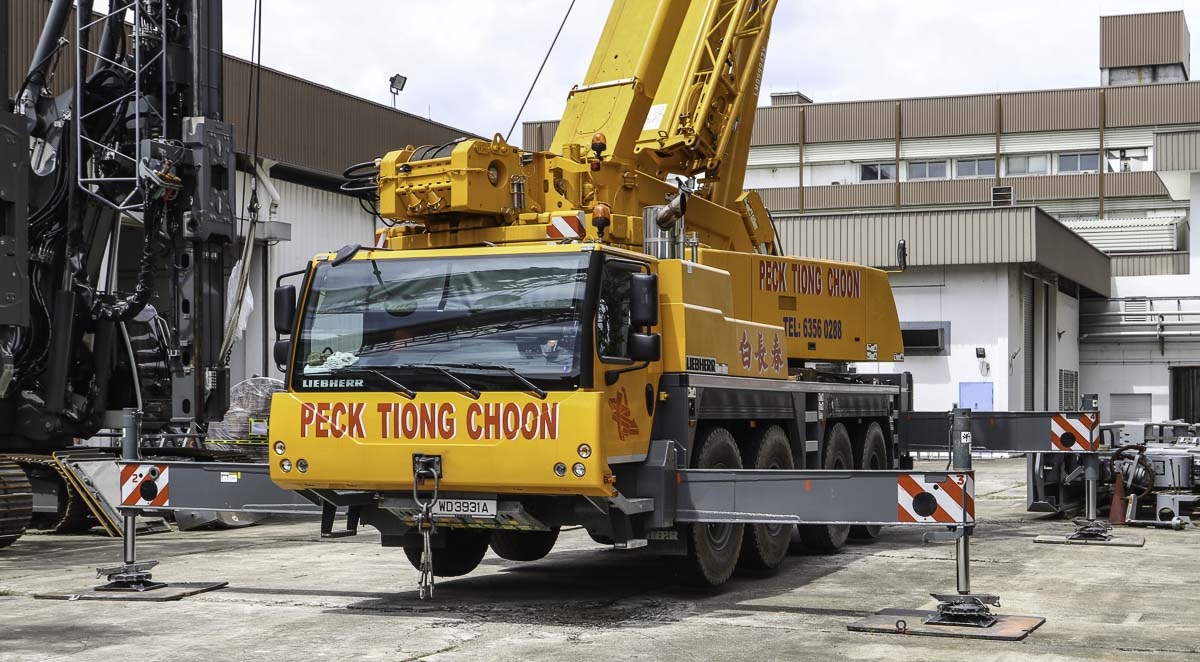

This sharp Liebherr LTM 1100-4.2 belongs to Peck Tiong Choon from Singapore (SG) and was erected at the premises of the supplier of the crane. It is a 100-tonne crane mounted on a 4-axle carrier with year of manufacture 2020.
In transit is the crane 14.008 meters long, 2.75 meters wide and 3.95 meters tall. The transport mass is approx. 70 tonnes.

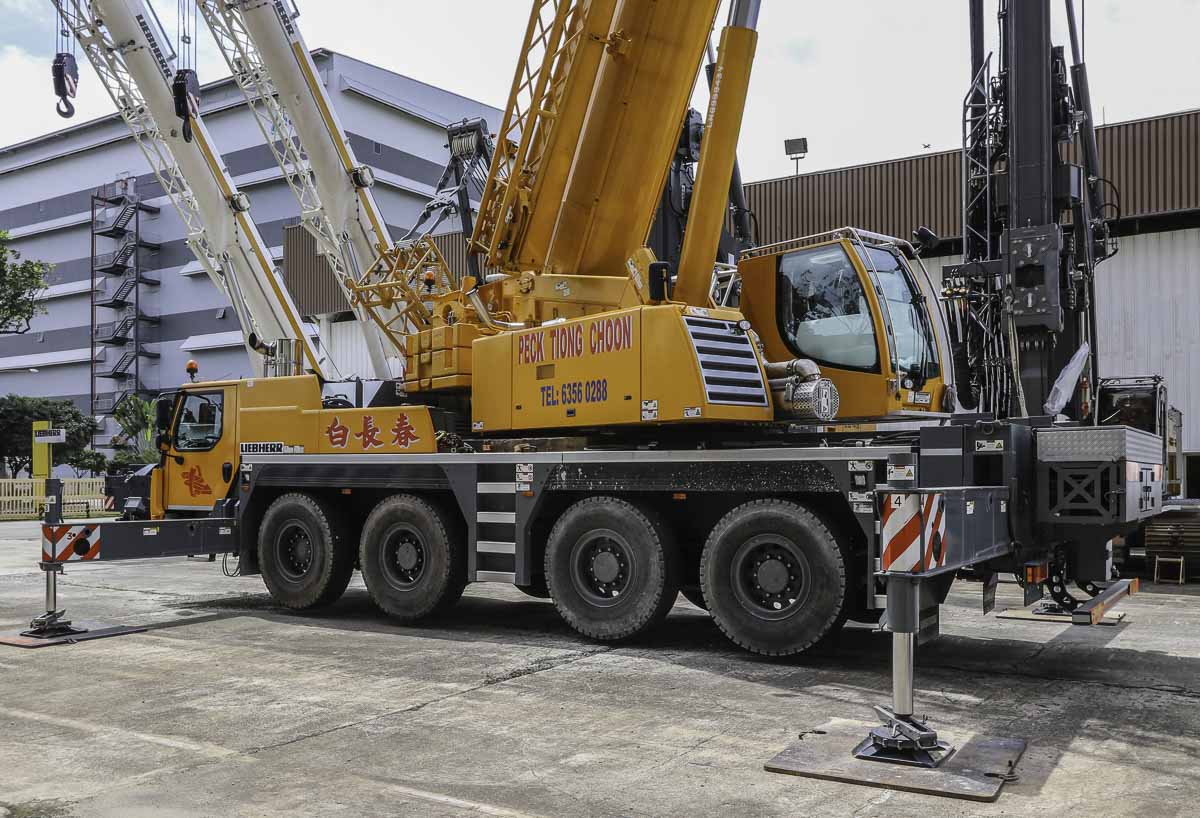

The 4-axle carrier has an 8x6x8-drive line where the axles 2, 3 and 4 are powered by a Liebherr 6-cylinder diesel engine with a power of 350 kW (476 hp). All axles are steerable.

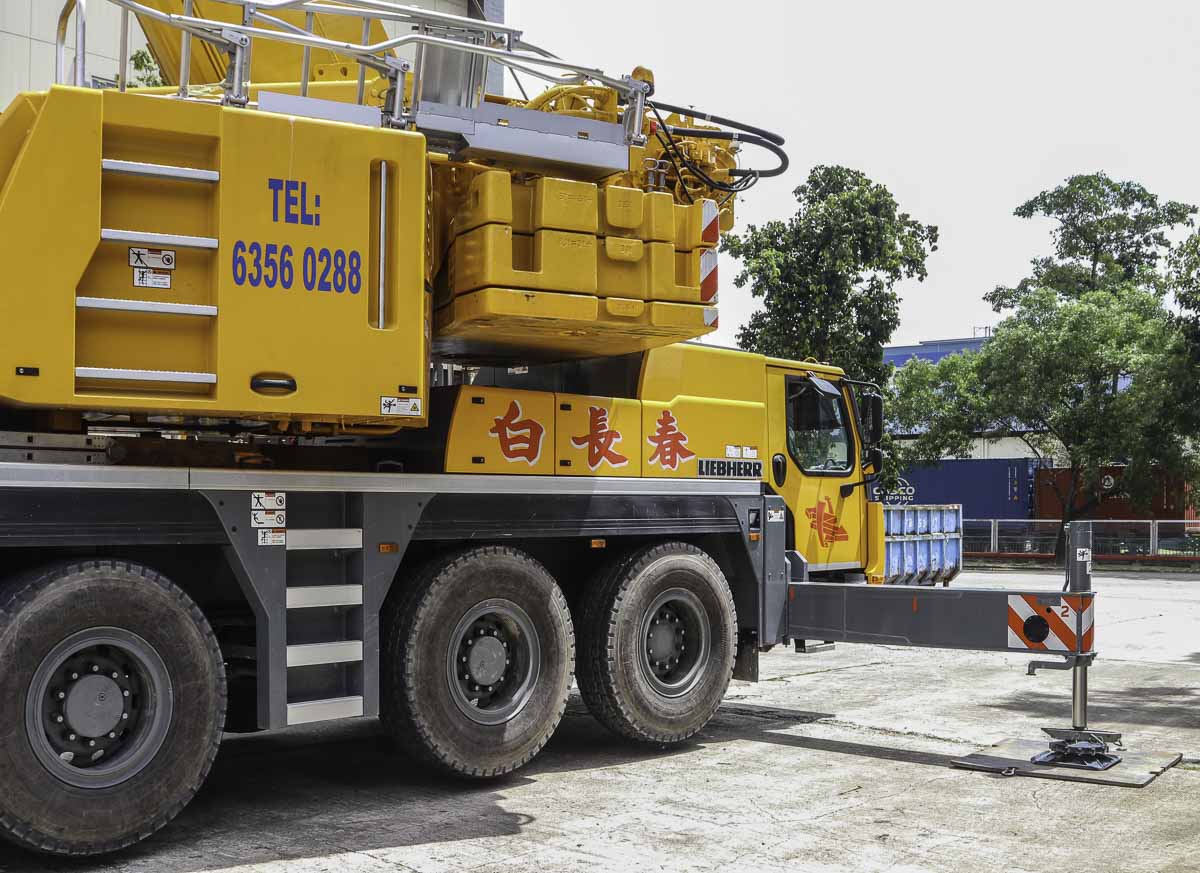

The outrigger base measures 8.61 x 7.01 meters, or half 8.61 x 5.01 meters.

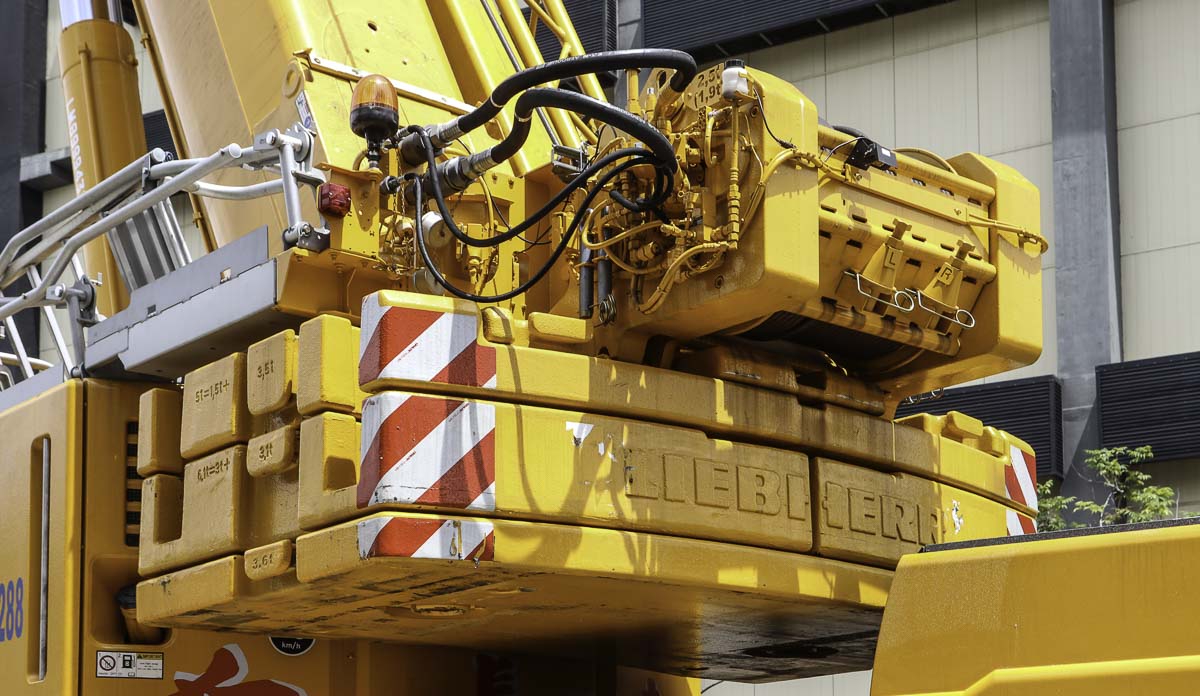

Here was the crane fitted with 14.7 tonnes of counterweight, the counterweight has a 4.11 meter tailswing. The full counterweight weights 25.7 tonnes. This crane is fitted with the optional second winch, the tailswing of the second winch is 4.58 meters.

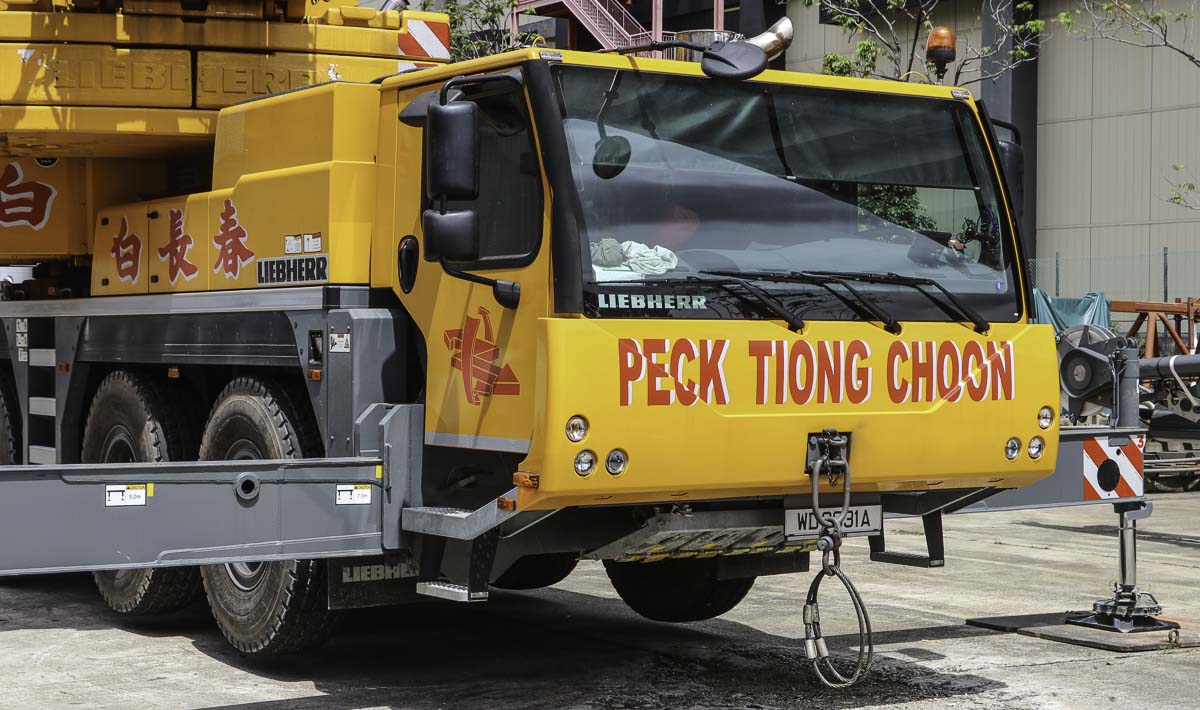

The colour scheme of Peck Tiong Choon is the same as the one of Liebherr, only the name stickers are added to the crane.

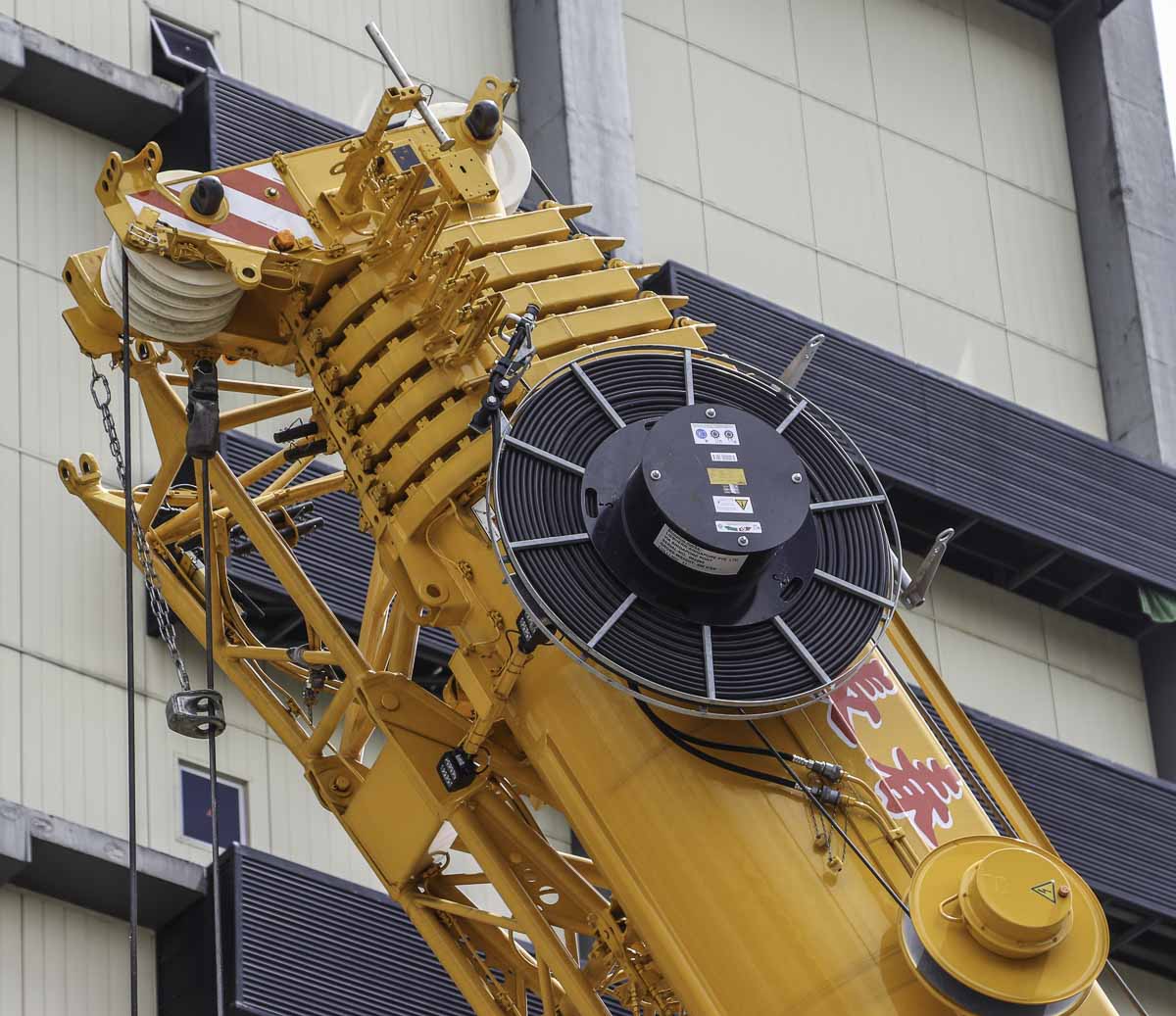

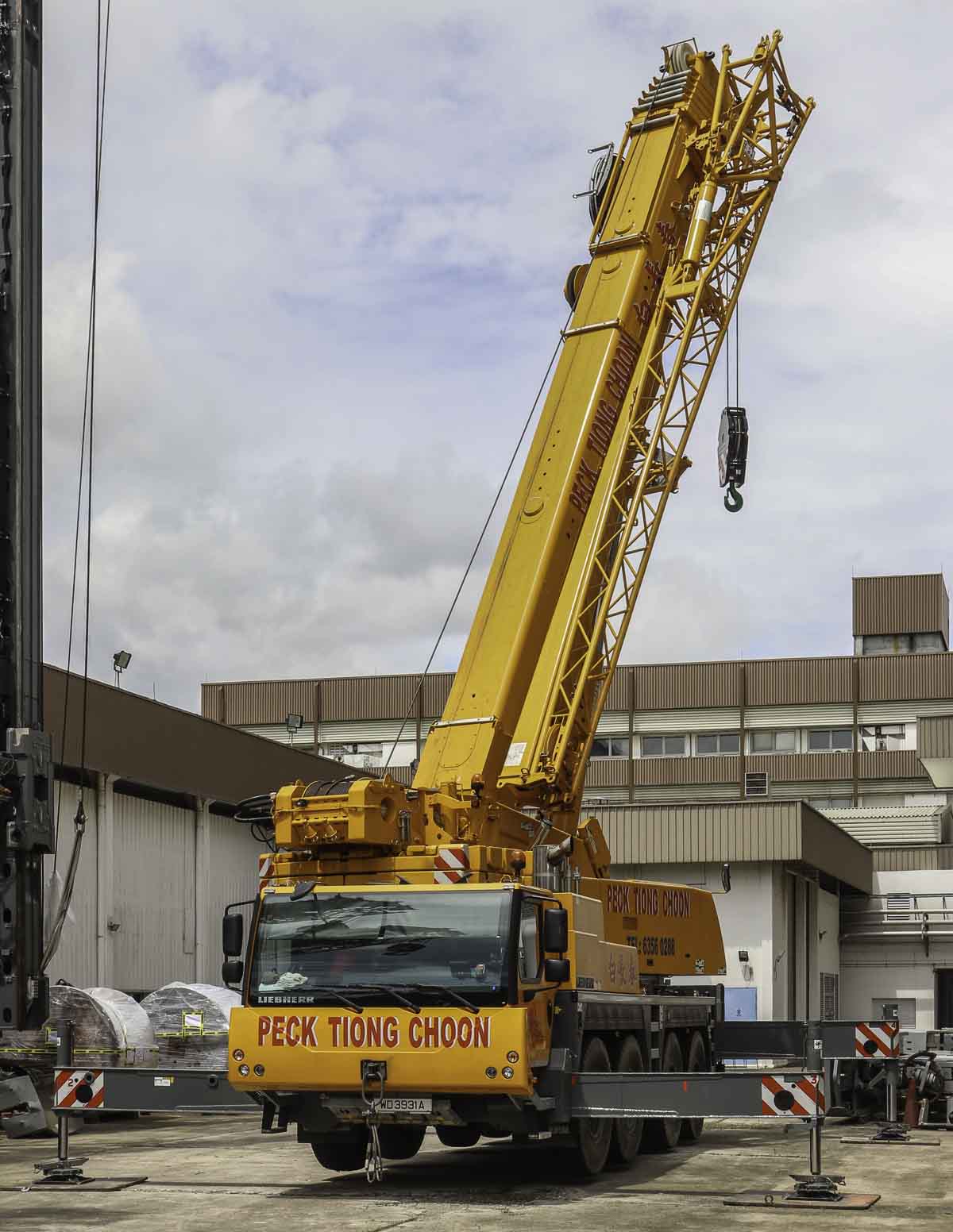

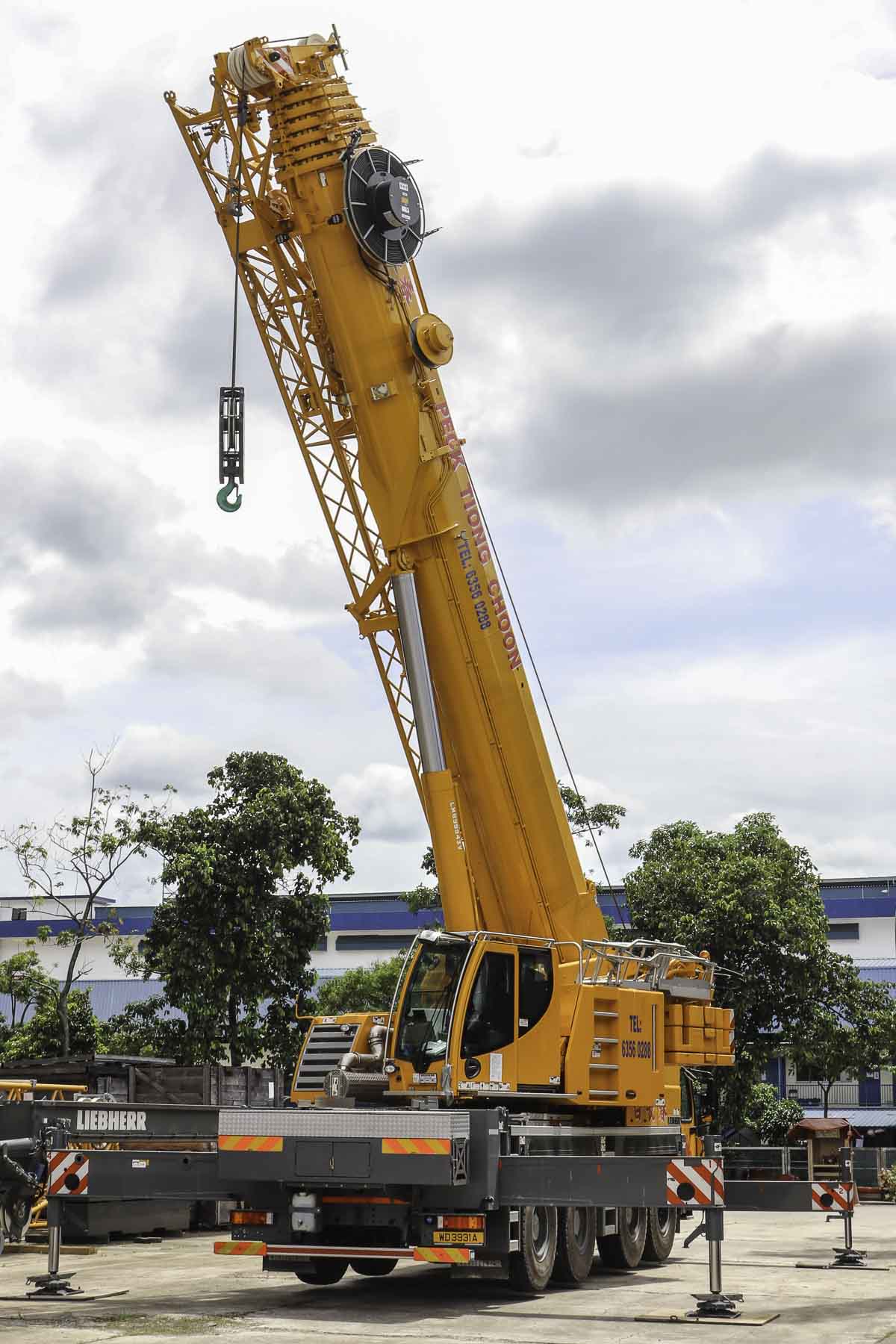

The crane has a 6-part main boom with an 11.5 meter base length that extends five times to a full length of 60 meters. This crane is fitted with the optional hydraulic jib, where the jib with a length of 10.8 - 19 meters can be hydraulically adjusted in an angle between 0 and 40 degrees.
A very sharp crane of Peck Tiong Choon!
