Liebherr LTM 1500-8.1 - Tiong Woon

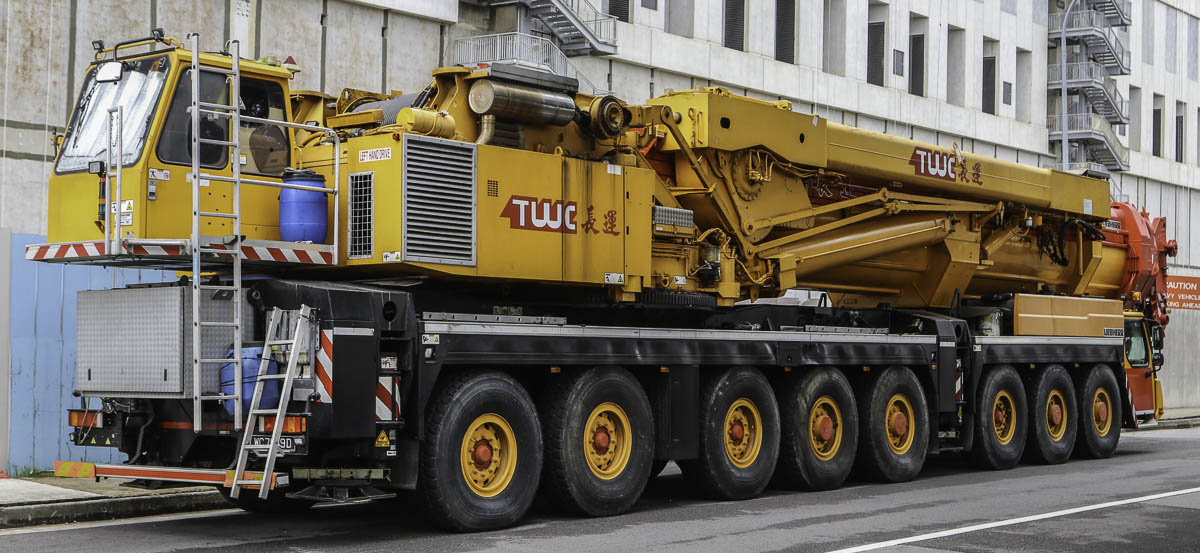

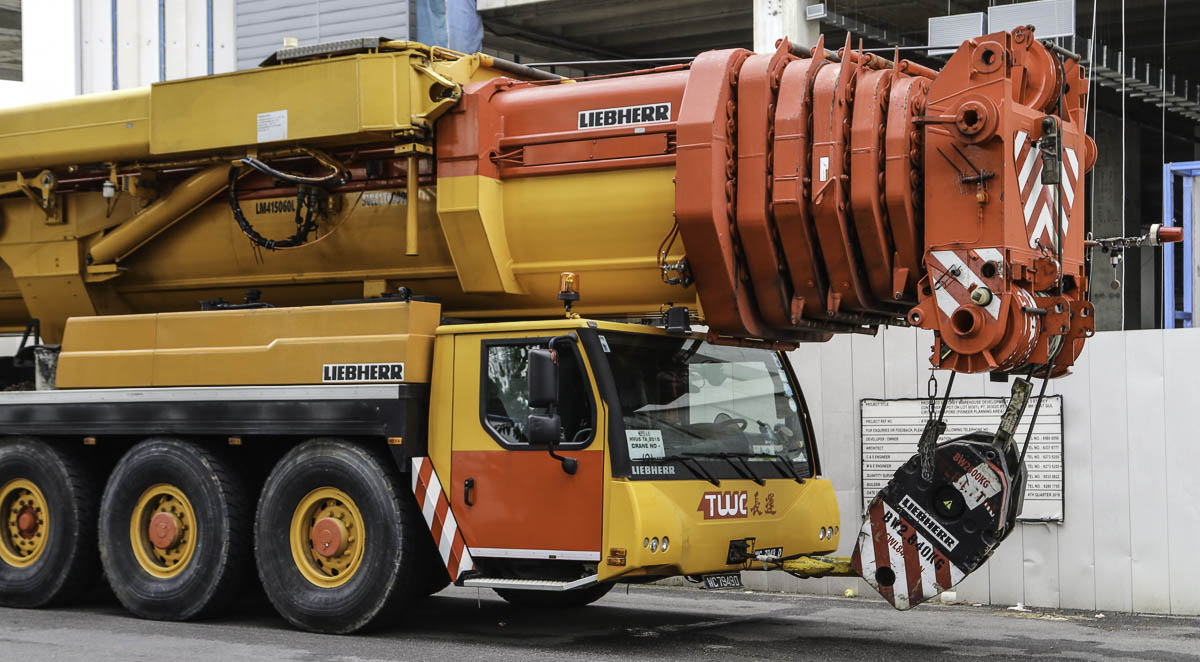

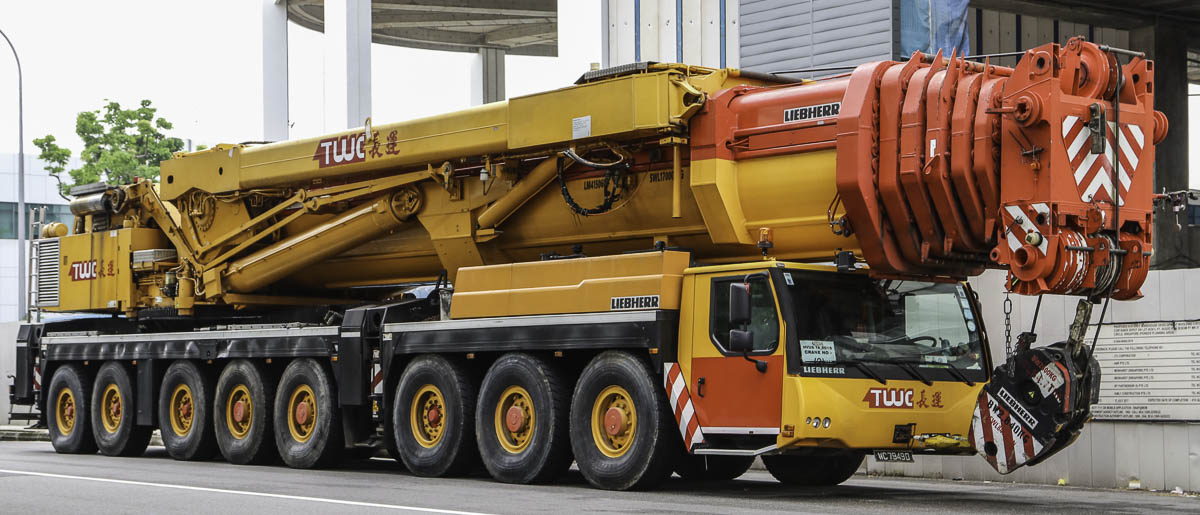

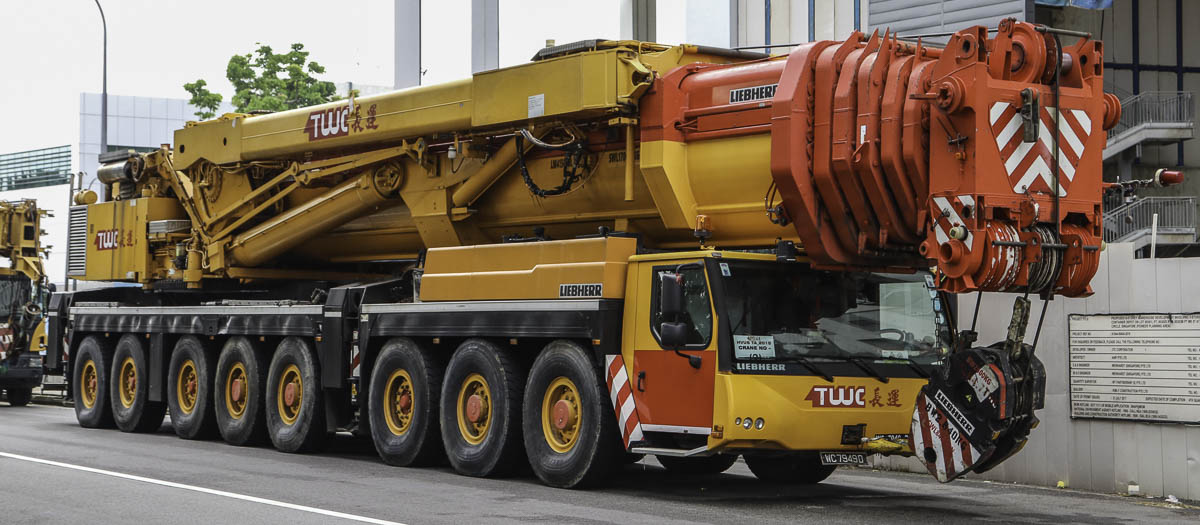

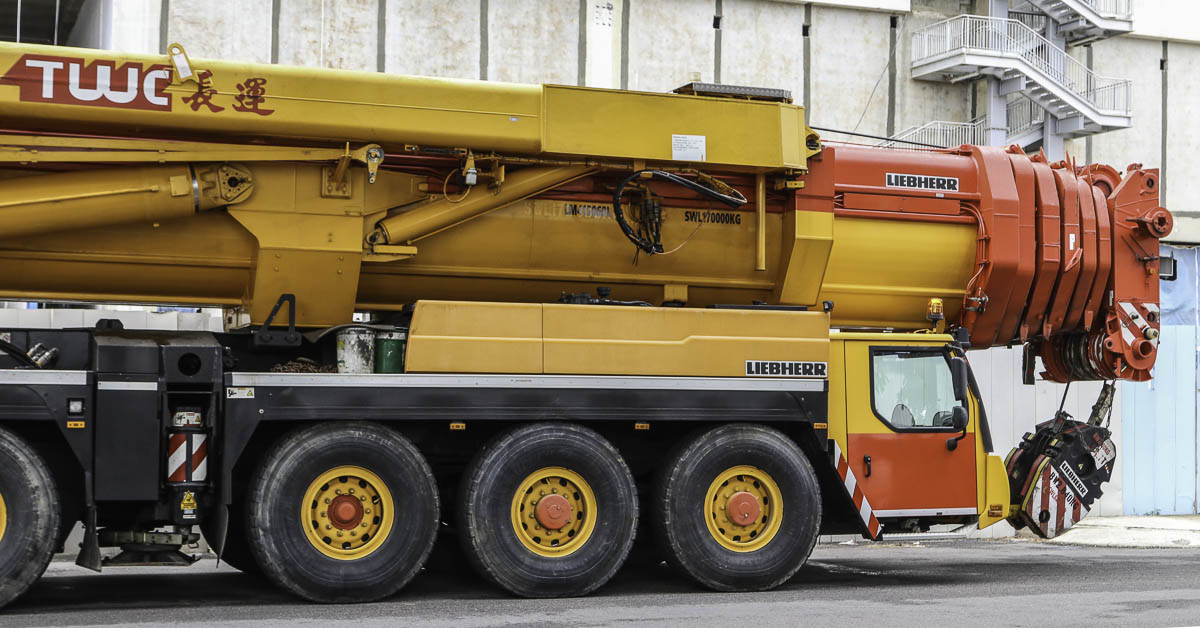

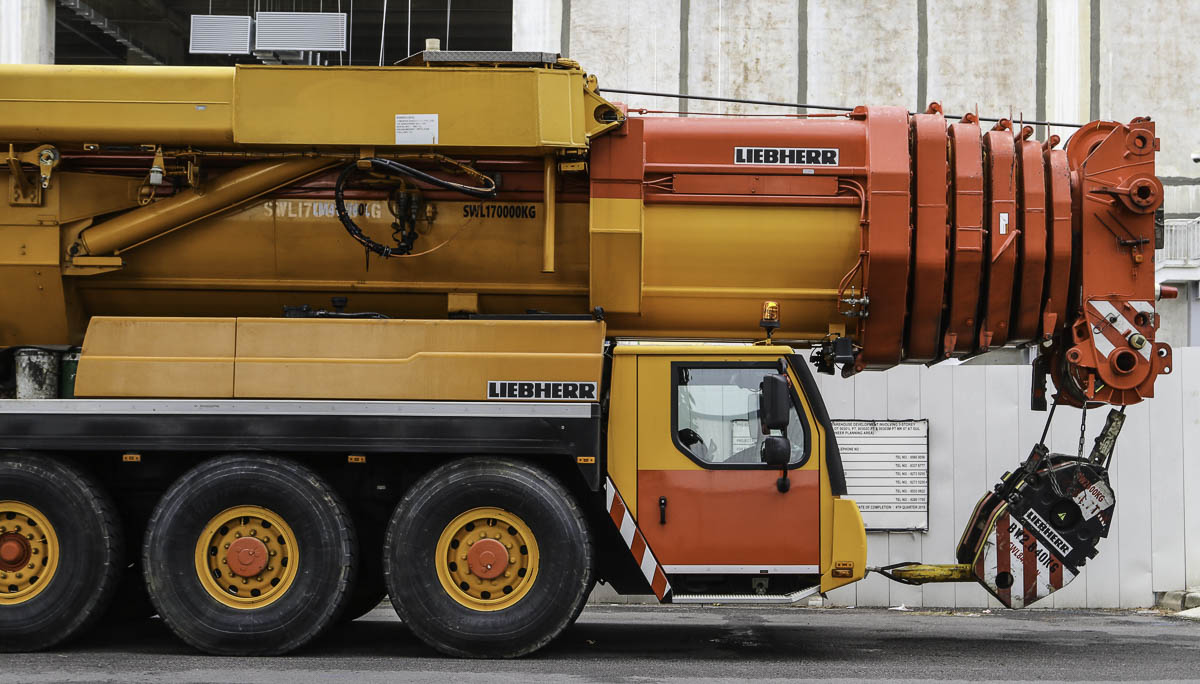

This is the sharp Liebherr LTM 1500-8.1 of Tiong Woon from Singapore (SG). It is a 500-tonne crane mounted on an eight-axle undercarriage with year of manufacture 2014. The crane stood here parked along the road next to a construction site and would be used to dismantle a tower crane.

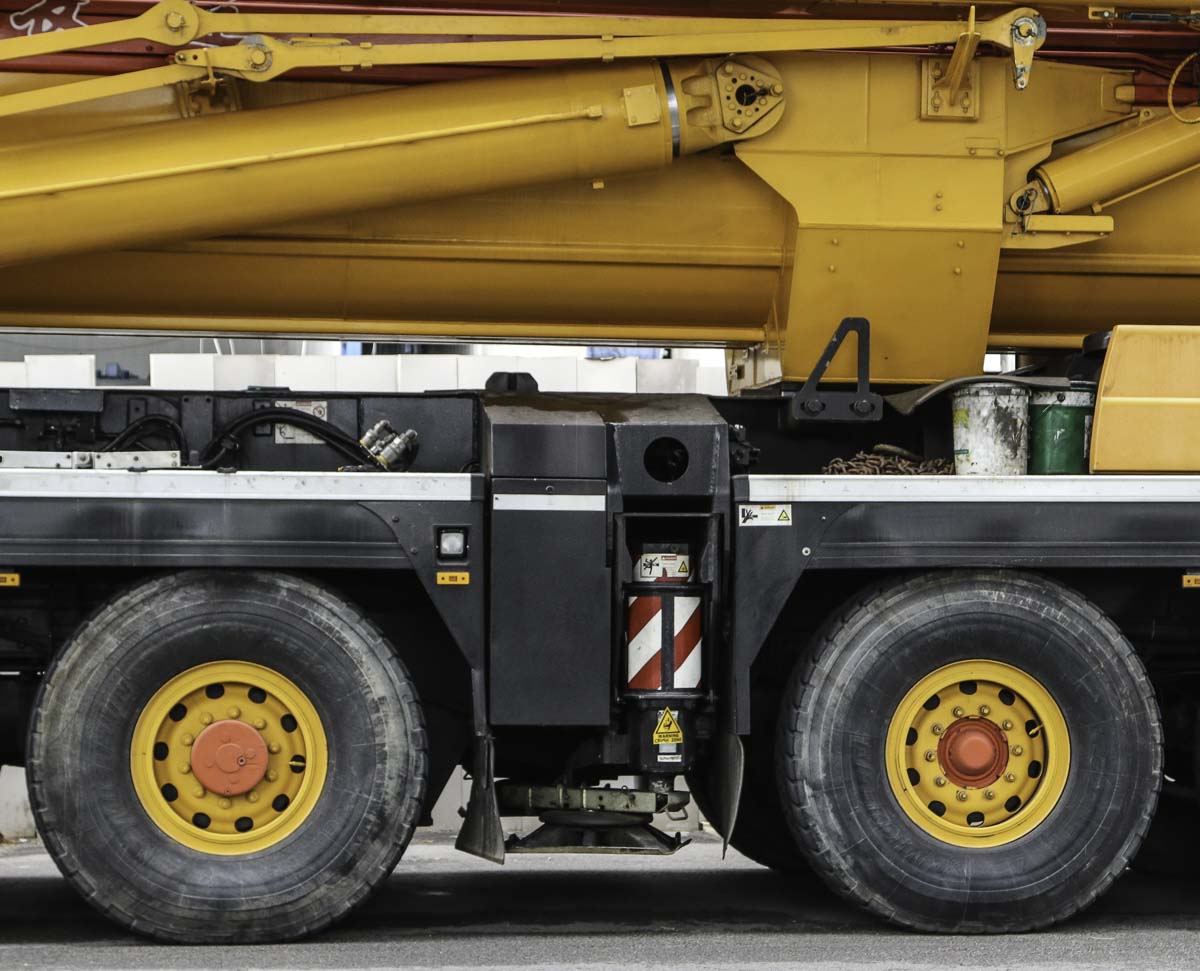

The undercarriage of the LTM 1500-8.1 is powered by a Liebherr D9508 A7, an 8-cylinder diesel engine with a power of 500 kW (680 hp). The diesel engine powers the axles 1, 2, 4 and 5. The axles 1 to 4, 7 and 8 are steerable.

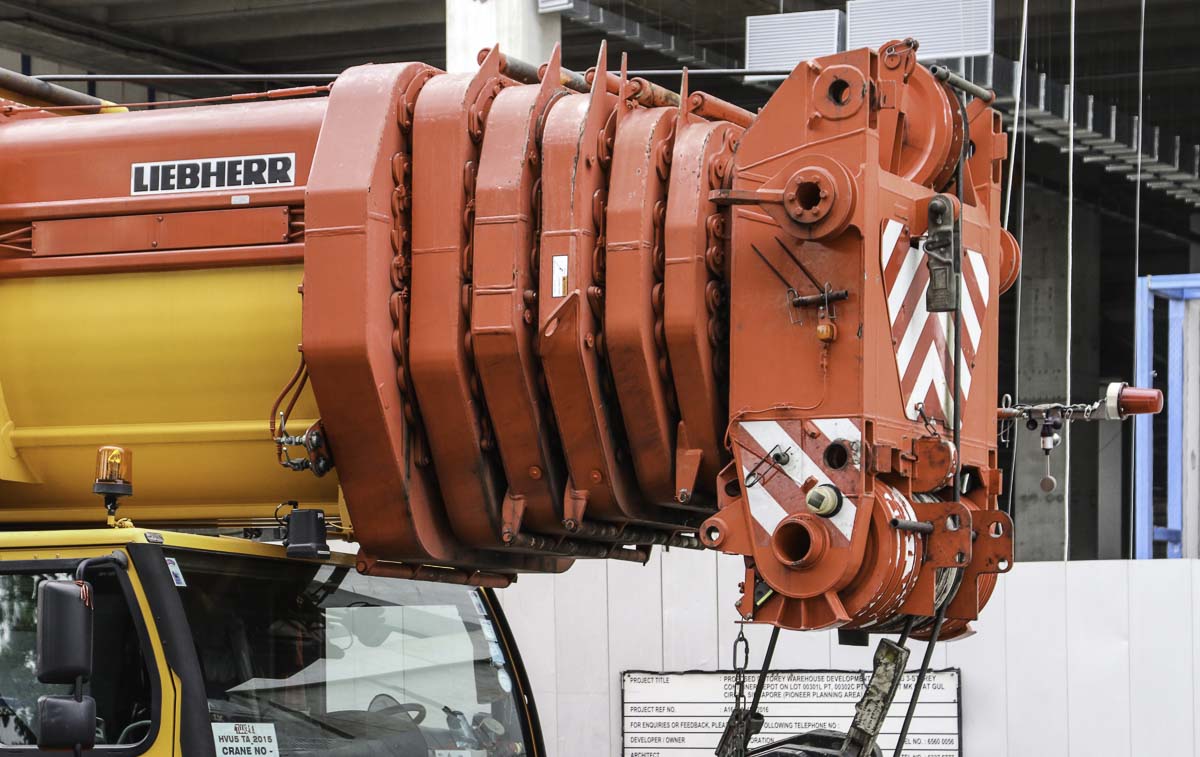

The seven-part main boom has a 16.1 meter base length and extends six times to a maximum length of 84 meters. The main boom could be extended by a 14 to 63 meter long fixed jib, or by a 21 to 91 meter long luffing jib.
The transport mass of the crane is approx. 125 tonnes in this configuration.
The outrigger base measures 10 x 9.6 meters, or half 10 x 6.25 meters.
In transit is the crane 21.4 meters long, 3 meters wide and 4 meters tall.

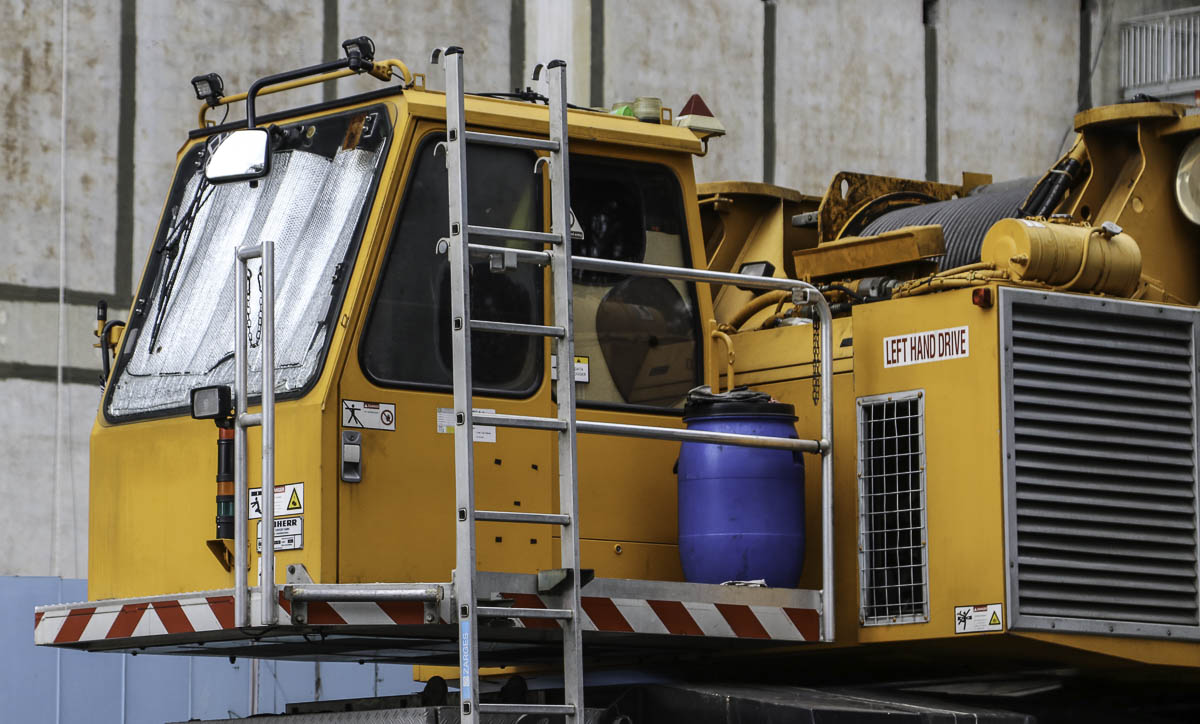

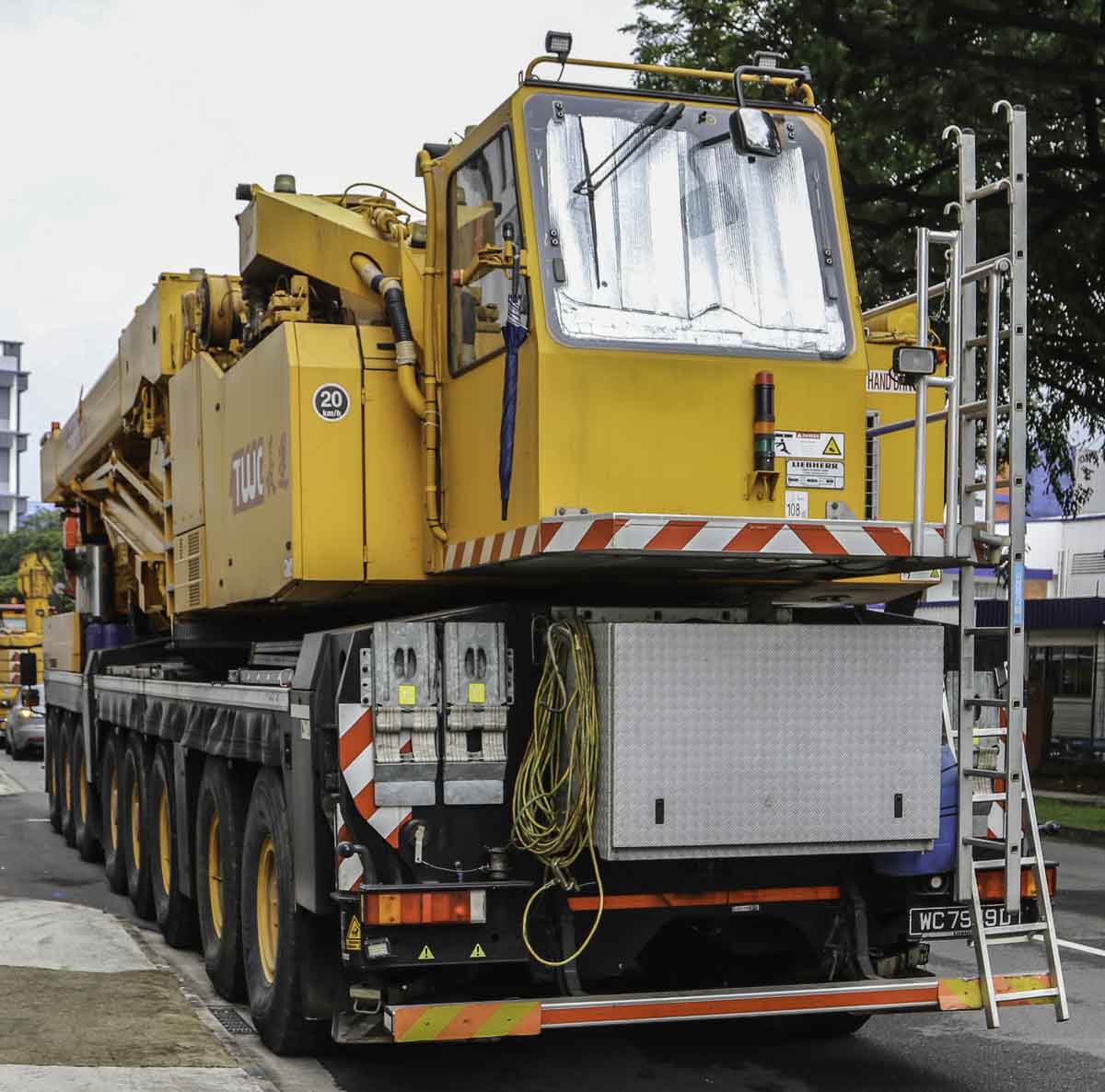

During the transport over the road is the cabin on the super structure behind the uppercarriage. During crane operation is a maximum of 165 tonnes of counterweight installed at the back of the super structure.
A very sharp crane in the colours of Tiong Woon!
